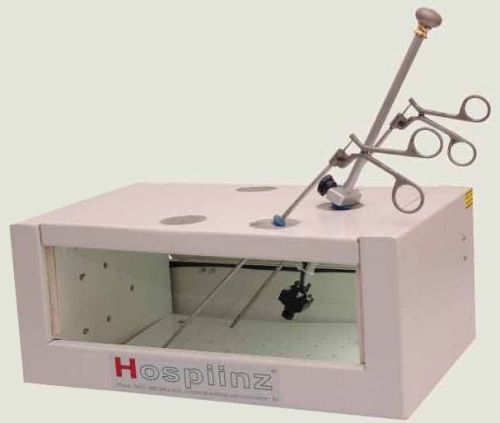

Laparoscopic Endo Trainer

The new virtual Laparoscopic Endo Trainer has designed and developed to give the picture as true as laparoscopic camera, without regular laparoscopic video camera, light source, telescope & fiber optic cable. The new virtual Laparoscopic Endo Trainer box has built in camera, Light source, telescopic rod and virtual trocars. The Laparoscopic Endo Trainer has Power coated sheet metal box with a shape to mean the abdomen, with 3-5 holes for instrument & telescope. The top cover of the sheet metal box has been hinged in one side and other side there is open provision for keeping the specimens. A plastic plate with holes is provided inside the box for specimen holding. Three virtual trocars have been provided to introduce the telescope and hand instruments. The CCD Camera is mounted in one end of the telescopic rods which will pass through the trocar hole and in the other end of the telescopic rod the hand grip is mounted. Hence the telescopic rod will not come off or fall down. Movement arrest clamp is provided for telescopic zoom-in and zoom-out movement to enable the trainee to keep the camera position as per requirement and can get trained without help of the camera person. The movement arrest clamp can be kept-off. The Video output of the camera has taken through sealed cables inside the Endo trainer box and finally connected to a socket, from where the output of the camera can be taken and it can directly connect to colour television. For illumination, the pencil bulb has been built inside the Endo trainer box. All the electrical wires and other adopters are concealed, so no electrical connections left out. Features :

• With a built in CCD camera, able to get the colour picture without our regular laparoscopic camera
• The telescopic rod will provide the movement of the camera one can experience the zoom in, zoom out, left, right, up and down movements
• Built in pencil tube light sources eliminates regular laparoscopic light source & fiber optic cable
• Compact, ergonomic & most economic design
• Technical Data :
  • Power Supply : 220V – 230 V – Ac
  • Frequency : 50 Hz
  • Max. Power consumption : 50 W (approximately)
  • Bulb Power : 7 W, Pl lamp
  • video Output : Av output – 1 0 Pal system (S.video output for laptop)
  • Weight : 6.5 kg.
  • Operative Area : Power coated sheet metal box with a shape to mean the abdomen, with 3-5 holes for instrument & telescope. The top cover of the sheet metal box has been hinged in one side and other side there is s "open" provision for keeping the specimens. A plastic plate with holes is provided inside the box for specimen holding. Three virtual trocars has been provided to introduce the telescope and hand instruments. Vision : The ccd Camera is mounted in one end of the telescopic rod which will pass through the trocar hole and in the other end of the telescopic rod the hand grip is mounted. Hence the telescopic rod will not come off or fall down. Movement arrest clamp is provided for telescopic zoom-in and zoom-out movement to enable the trainee to keep the camera position as per requirement and can get trained without help of the camera person. The movement arrest clamp can be kept-off. The Video output of the camera has taken through sealed cables inside the endo trainer box and finally connected to a socket, from where the output of the camera can be taken and it can directly connect to colour television. Illumination : For illmination the pencil bulb has been ubilt inside the endo trainer box. All the electrical wires and other adopters are consealed, so no electrical connections left out.
