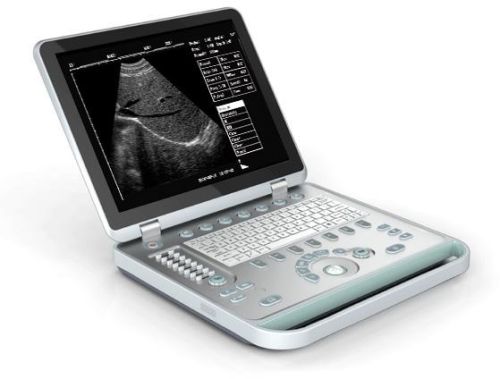

Laptop Ultrasound Scanner

We are offering SS-7 Laptop Ultrasound Scanner(ultrasonic,black white,Imaging System).
Specifications:
Display size: 15 inch TFT
Scanning manner: Electronic convex array, electronic linear array
Working frequency: 2.0MHz~10MHz
Display mode: B, B+B, B+M, M, 4B
Scanning range: Convex array 60°~150°
Amplification factor：1.0, 1.2, 1.5,2.0
Gain control: 8 segments TGC and overall gain can be adjusted respectively
Image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc
Image gray-scale: 256 levels
Scanning line number: 512 linesframe
Frame rate: 30 framessecond
Digital scanning conversion: 512×512×8 bits
Memory capacity: ≥2GB
Conventional measurements: distance, perimeter, area, volume
Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc.
Report function: auto make report
Battery capacity: 3000mAH7.4V,can work more than 2 hours
Display screen: 15" TFT
Output interface: USB port, video.
Overall size: 362mm×340mm×60mm
Total weight: 4Kg(with battery)
Standard Configuration: Host, convex probe, built-in battery, power adapter, bag.
Optional: Linear probe, Micro-convex probe, Rectal probe, Backfat probe.
