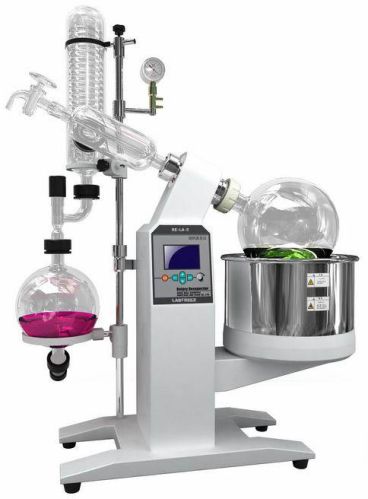

Large Capacity Rotary Evaporator

We are offering large capacity rotary evaporator.
Usage:
large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.
features:
teflon (ptfe) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum.
The introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.
A vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.
Water bath electric lift and manual lift support, easy to use.
Ptee discharge valve, corrosion resistance, pollution-free.
technical data:
model:re-la-5
capacity of rotary bottle:5l
flanged diameter:φ50mm
capacity of collecting bottle:3l
rotary control: digital display, frequency conversion stepless
rotary speed:10to140r/min
power of rotary motor(w):40w
condensing tube: vertical double serpentine tube
water bath: stainless steel water bath
temp. Range: digital display, rt~99°c
vacuum degree:399.9pa (below 3mmhg)
evaporating capability:water≥2l/h
alcohol≥4l/h
elevating mode: electric
elevating stroke:0~150mm
power supply:220-240v/50hz
power:2.2kw
dimensions(mm):765l*400w*1070h
