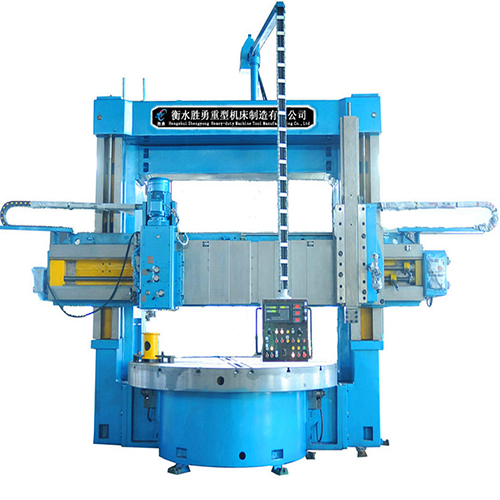

Large CNC Vertical Boring Mills Lathe Machine

 Large CNC vertical boring mills lathe machine is suitable for cutting tools such as cemented carbide and ceramics, and vertical lathe can be used for rough, semi finishing and finishing of inner and outer cylindrical surfaces, conical surfaces, end faces, cutting grooves, screws, turning surfaces, etc.
Features of Large CNC vertical boring mills lathe machine CK 5225
1 The work table uses dynamical pressure slide-way and NN30 dual cylinder roller bearing. It features high bearing capacity and revolving precision.
2 CNC vertical boring mills adopt AC servo motor, imported ball screw to change general type to CNC one.
3 The vertical boring mills adopts module design and finite element analysis with simple structure and strong reliability.
4 High-precision gears are with low noise and stable operation.
5 Accessories including side head,cooling system and digital display device can be provided according to special requirements
Technical specification of Large vertical boring mills lathe machine CK5225
1 Maximum turning diameter 2500mm
2 Maximum height of workpiece 16002000220025003000 mm
3 Maximum weight of workpiece 1020 t
4 Table diameter 2250 mm
5 Speed change of table 2~63 rmin
6 Maximum torque of table 63 KNmin
7 Vertical travel of tool post 10001250 mm
8 Horizontal travel of tool pos
