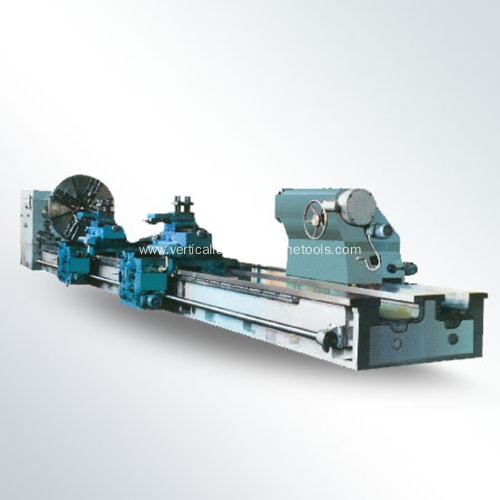

Large Diameter CNC Parallel Lathe Machine

Parallel lathe machine is widely used in processing and manufacture of mechanical parts in the fields of wind power, petroleum, chemical industry, paper making, textile, mining, ship and aviation, etc; also, the lathes could be customized according to the specifications of customers.
Features of Large diameter CNC parallel lathe machine
1 Functions as end-facing,cylindrical and internal turning, inch,module and pitch thread,drilling and boring.
2 Optimization design and refined refinement of all basic devices
3 Casted in whole piece, box type internal structure, of high rigidity, with hardened guideway.
Technical specification of CNC parallel lathe machine CW61125
1 Maximum swivel diameter on the bed 1250 mm
2 Maximum turning diameter over carriage 900 mm
3 Maximum length of workpiece 60dm
4 Maximum weight between center 18t
5 Diameter of faceplate 1250mm
6 Maximum torque of faceplate 63KN.m
7 Range of spindle speeds 1-200rmin
8 Maximum cutting force of carriage 71KN
9 Total cutting force 100KN
10 Range of feed rates ( long) 0.1-40 mmmin
11 Range of feed rates(Trans ) 0.05-20 mmmin
12 Range of feed rates(longitudinal) 0.025-10 mmmin
13 Rapid speed of of carriage( long) 3000 mmmin
14 Rapid speed of of carriage( Trans) 1500 mmmin
15 Range of Processing screw (metric) 1-60 mm
16 Range of Processing screw(imperial system) 6-12(tin)
