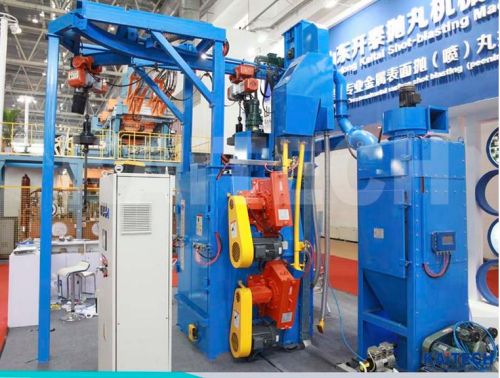

Contact SupplierWe are offering large hangers type blasting machine.
Detailed introduction:
it is mainly composed of the following parts:
1, blast cabinet
the blast cabinet body is formed by welding q235 steel plate and profile steel together, there are 2 3 4 blasting wheels on one side of wall to provide thoroughly cleaning.
At the bottom side, steel plate are inclined to form a funnel so as to let shots flow into the screw conveyor underneath.
As for the door, it has two doors and pneumatically controlled.
2,blast wheel assembly
it is installed at the top of blast chamber, composed of blasting wheel, belt pulley, v-belt, control cage, distributor,blade, liners.
Blasting wheel is qy360 model, easy to assembly and disassembly, eco-friendly, energy-saving and highly effective performance.
Distributor, control cage and blades re high chrome casting material through precision castings, significantly prolong life spans.
Blade: more than 800 hours
distributor: more than 1200 hours
control cage: more than 1200 hours
3,screw conveyor
it is machined as a whole after it is welded, screw blade are mn16 steel via special treatment to make the pitch and outer helix dimensions exceptionally precise. On the end of shaft, there is a pulse wheel to detect working status.
4,bucket elevator
it is composed of cycloidal reducer,conveying rubber belt, belt pulley, hopper, housing and tensioning device.
5,separator
it is mainly composed of winnowing zone, rotary screen and other parts.
6,dust removal system
it adopts two stage dudusting process to remove dust completely: large particles are separated inside the settling box, and then a cartridge filter is used for further dust removal.
7,control system
it is controlled by conventional electrical control system and interlocking function is provided to avoid misoperation.
