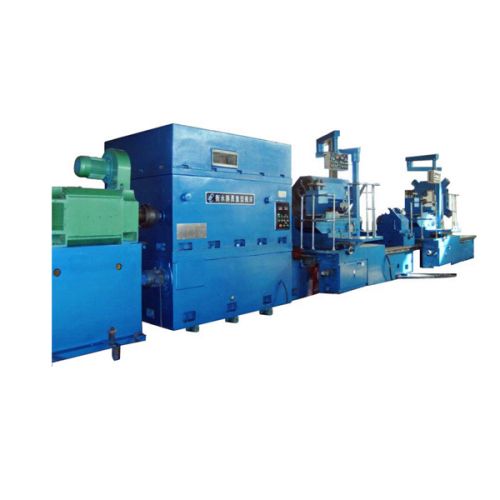

Large Horizontal Lathe Machine CW61250

₹ 45.25 Lakh / Set

transportationshipment
Supply TypeSupplier
Preferred Buyer Location All over the world

Product name : Large horizontal Lathe machine CW61250 Application fields of Large horizontal Lathe machine CW61250 The machine is suitable for facing turning external and internal cylindrical....

Company Information

HengshuiShengyongHeavy-dutyMachineToolManufacturingCo.Ltd.

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Product name : Large horizontal Lathe machine CW61250
Application fields of Large horizontal Lathe machine CW61250
The machine is suitable for facing turning external and internal cylindrical surfaces as well as cutting of a wide range of different metric, module and diametral pitch threads .
Large horizontal Lathe machine model:
CW61125CW61145CW61160CW61200CW61125CW61315
CK61100CK61125CK61160CK61200CK61250
Technical specification of Large horizontal Lathe machine CW61250
1 Maximum swivel diameter on the bed 2500 mm
2 Maximum turning diameter over carriage 2200 mm
3 Maximum length of workpiece 120dm
4 Maximum weight between center 63t
5 Diameter of faceplate 2000mm
6 Maximum torque of faceplate 100KN.m
7 Range of spindle speeds 0.63-125 rmin
8 Maximum cutting force of carriage 70 KN
9 Total cutting force 120 KN
10 Range of feed rates ( long) 0.265-500 mmmin
11 Range of feed rates(Trans ) 0.106-200 mmmin
12 Range of feed rates(longitudinal) 0.053-100 mmmin
13 Rapid speed of of carriage( long) 3000 mmmin
14 Rapid speed of of carriage( Trans) 1200 mmmin
