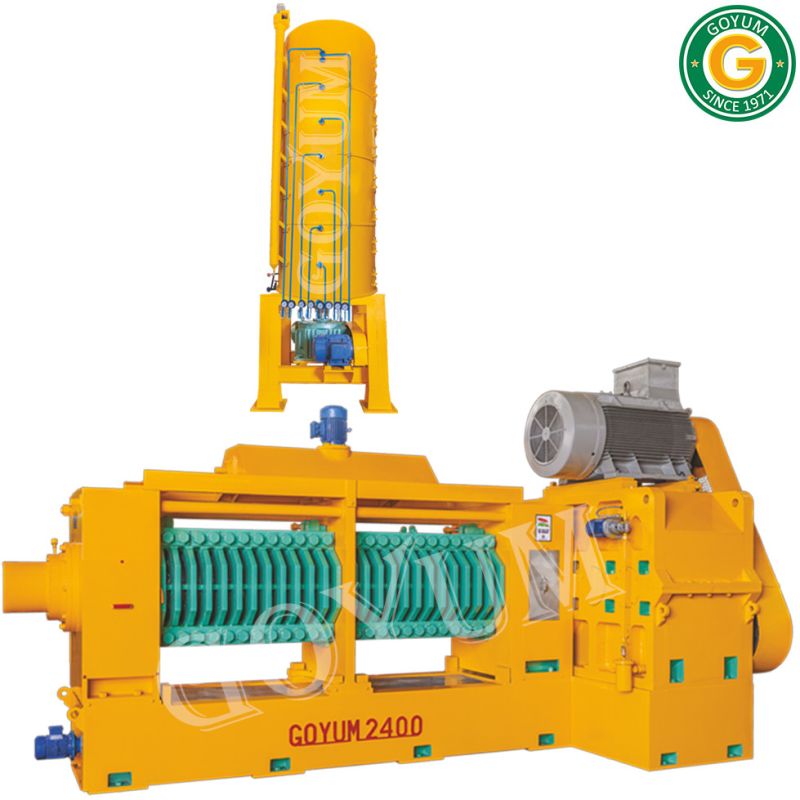

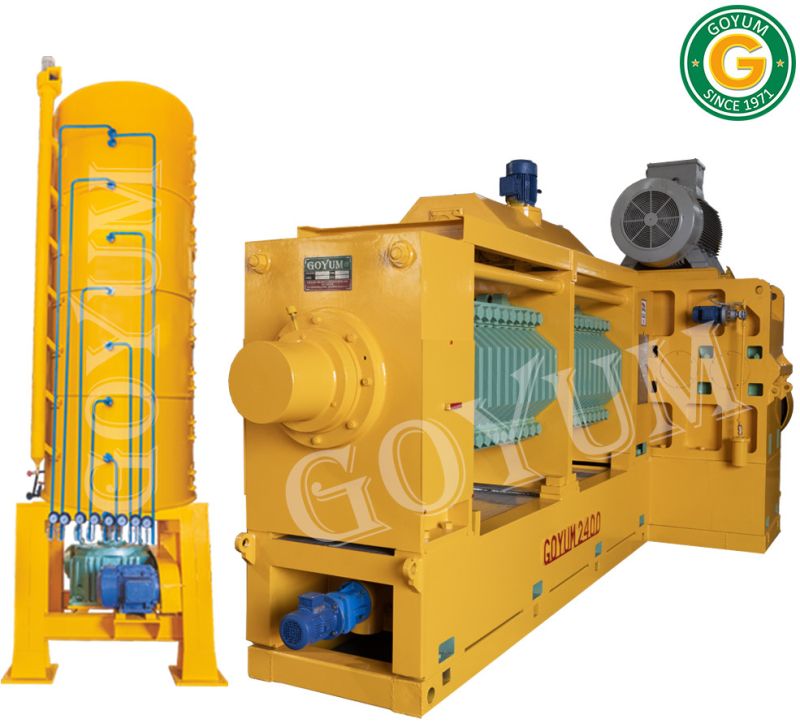

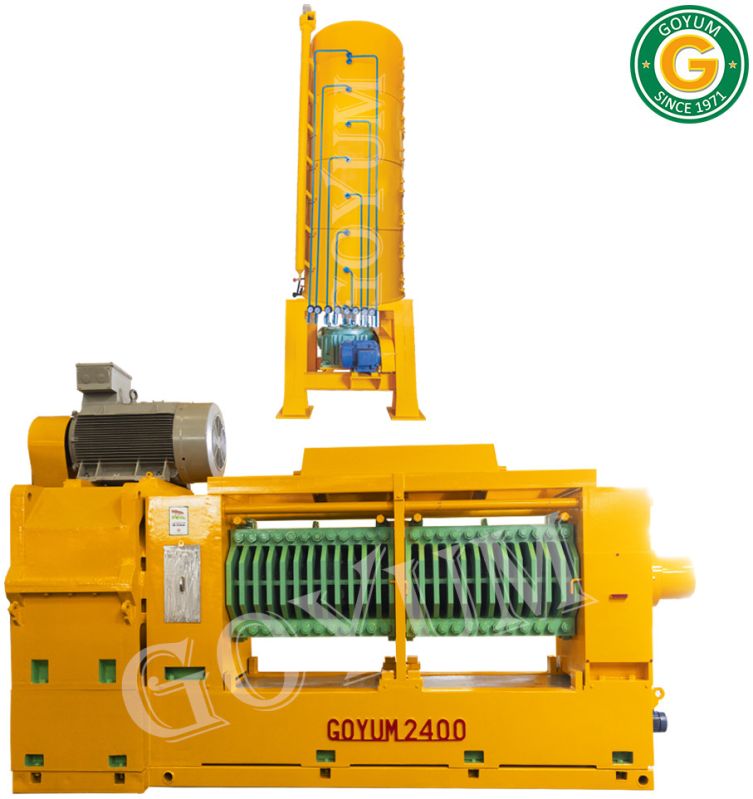

Electric Large Scale Industrial Oil Extraction Machine

Name: Large Scale Industrial Oil Extraction Machine
Brand: GOYUM
Price: 23375000 INR
Availability: InStock

₹ 2.34 Cr - ₹ 2.51 Cr / piece

Company Information

4.5/5

(27)

Ask for more detail from the seller

Report incorrect details

CertificationISO 9001:2008 Certified, CE Certified, ISO 14001 :2015 Certified
ConditionNew
Capacity230 – 250 Ton In 24 Hours In Pre-Pressing (Capacity Differs With The Density Of Oilseeds & Nuts And
Machine Weight46,000 Kgs (Expeller,Cooker And Supporting Structure)
Packaging TypeWooden Box
Driven TypeElectric
Country of Origin220V, 380V, 440V
Operating TypeSemi Automatic
SpecialitiesHigh Performance
I Deal InNEW
ApplicationMulti Seed Oil Extraction
Warranty1 Year Against Manufacturing Defects
Model NumberGOYUM 2400
Brand NameGOYUM
Dimension (LxBxH)31' x 7'4" x 23'6"
Kettle Motor3 Phase, 50 HP, 1440 RPM
Expeller Motor3 Phase, 250 HP, 1440 RPM

Large Scale Industrial Oil Extraction Machine is used to extract oil from various types of edibles as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base.
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 16" x 50" Long, Discharge End:Size: Ø 16" x 50" Long, Opening and closing of chamber is motorized.
Worm Assembly	Hard Face welded along with Discharge Ring and Sliding Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Chamber Lifting	Arrangement is motorized
Round Kettle (Cooker)	8 Stages with Steam Jackets of Dia. 78” for efficient cooking of seed. Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure fitted with kettle driving Gearbox and Motor.
Cake Thickness	Can be Adjusted manually after stopping the machine
Oil & Oil Cake	Superior Quality
Maintenance	Minimum

Model	Capacity	Motor Power	Length	Breadth	Height
GOYUM 600	50 – 60 TPD* in Pre-pressing 30 – 35 TPD* in Single & Final Crushing	3 Phase 100 HP for Expeller	12 ft	7 ft	7 ft
Cooker/Kettle	--	3 Phase 20 HP for Kettle	7 ft	7 ft	12.6 ft

Payment Terms L/CT/T
Port of DispatchMumbai / Mundra
Packaging DetailsWrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)
Delivery Time35 – 40days, but confirmed delivery time will be provided at the time of confirmation.

Interested in this product? Ask for more details & Latest Price from seller
