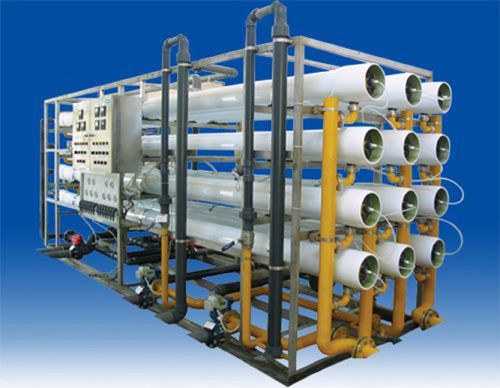

Large-scale Water Treatment System

We are offering
1. Raw water pump-- provide the pressure to quartz sand filteractive carbon filter
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.active carbon filter--remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5.micron filter--prevent large particles, bacteria, viruses into ro membrane, accuracy is 5um,
6.high pressure pump-- provide the high pressure to ro membrane
7. Ro system-- main part of the plant. The ro membrane's desalting rate can reach 99%, removing over 99% ions
model production of water (tonh ) motor power (kw) membrane entrance diameter (mm) size(l*w*h) ( cm) weight(kg)
ro-0.5 0.5 1.1 4040 32 170*70*170 200
ro-1 1 1.5 4040 32 155*90*180 200
ro-2 2 3 4040 38 480*70*200 300
ro-3 3 4 8040 48 470*100*230 400
ro-4 4 5 8040 48 470*100*230 450
ro-5 5 7 8040 60 500*120*230 600
ro-10 10 11 8040 60 900*200*200 800
ro-15 15 16 8040 72 1000*187*300 1000
ro-20 20 30 8040 60 1000*180*400 1550
welcome to visit our factory.
Any inquiry please feel free to contact me directly anytime, phone.
