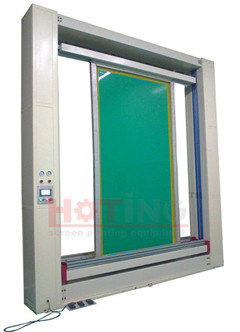

Electric Large Size Screen Coating Machine, Brand Name : Hoting

Application Scope:
The series is suitable for screen printing screen high-precision photographic emulsion coating.
Features:
(1) PLC programmable controller and HMI composition as the operating control system.
(2) Full automatic operation via touch-screen settings, ordinary plate-maker can be easy to produce high-quality precision screen.
(3) Fixing clamps Unlock clamps set by a foot switch which controls the air pressure, easy to load and unload screen.
(4) Coating speed, coating time and a single, double-sided coating can be freely set.
(5) With pressure regulating function, the coating thickness can be controlled via a set number of application times and applying pressure.
(6) While reaching stop position would automatically slow down to 20mm near the frame, no need to fix screen extra edges.
(7) Use of rail steel with special low vibration, ripple-free coating process.
(8) Operating system with multi languages, multiple coating patterns, and detailed parameter settings.
(9) Special corrosion-resistant treatment aluminum scoop coater, with no clearance with the coating structure, maintain stable emulsion coating.
Parameter:
Model
CAG-1830
CAG-2540
Max frame size (OD)
1800 X 3000mm
2500 X 4000mm
Min frame size (OD)
600 X 600mm
600 X 600mm
Coating speed
50 ~ 150mmsec
Frame fixing
Vacuum pneumatic clamps
Air pressure
6kgcm2
Weight
Approx. 550kg
Approx. 650kg
Power
220V X 1ph X 2.2KW
220V X 1ph X 2.2KW
Dimension (W X D X H)
2221 X 1164 X 3862mm
2821 X 1164 X 4862mm
� Special specification can be made for customized model.
