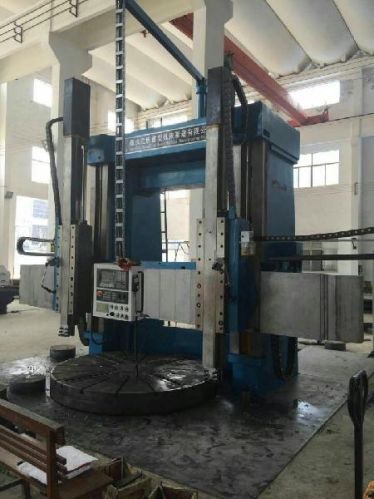

Large Size Vertical Lathes Machine

Large size vertical lathes are appropriate for ferrousnon-ferrous and non-metal material,processing roughlyfinely upon insideoutside cylindrical surfaces, inside and outside conic surfaces, flat and curved surfaces and so on.The vertical lathe series can be divided into ingle column vertical lathe and double column vertical lathe.We can supply low price vertical lathes at appropriate configuration.
Large size vertical lathes features are as following:
1The hydraulic system is powerful, reliable adopting brand name components
2 Frame feature is with heavy ribbing and has been annealed tension-free in a carefully monitored process
3 The heavy column design and hardened guideways for cross traverse and side support give this machine the proper rigidity to support its power.
Technical specification of Large size vertical lathes C5225
1 Maximum turning diameter 2500mm
2 Maximum height of workpiece 16002000220025003000 mm
3 Maximum weight of workpiece 1020 t
4 Table diameter 2250 mm
5 Speed change of table 2~63 rmin
6 Maximum torque of table 63 KNmin
7 Vertical travel of tool post 10001250 mm
8 Horizontal travel of tool post 1400 mm
9 Rotation range of tool post ±30° Degree
10 Power of main motor 55 kw
11 Machine weight (About) 32~38 t
Parts of Large size vertical lathes machine
