Contact SupplierWe offer large space riveting machine.
characteristics:
■vertical style with large space
■hydraulic driven or pneumatic as optional
■pressure by stepless regulation
■double-hand buttons or foot pedal
■rotary part protected
■oil tank joit or separated with machine scope of applications :daily hardware, eclectronic products, automobile products etc.
customized available

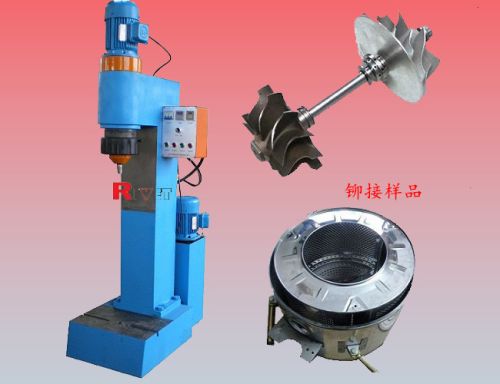

bm9l is a kind of vertical orbital riveting machine with large space to meet special product's requirement, such as large body, tubbish parts and long axis etc. specifications:
▲max riveting diameter ф 9mm ( solid steel rivet )
▲max riveting pressure 14kn
▲stroke length range 30mm
▲available space 680mm
▲throat depth 125mm
▲riveting tool length 50mm
▲eccentric angle 4°
▲motive force hydraulic
▲area of the table surface 360mm×290mm
▲power 0.92kw
▲physical size 700mm×500mm×1417mm
▲net weight 250kg
