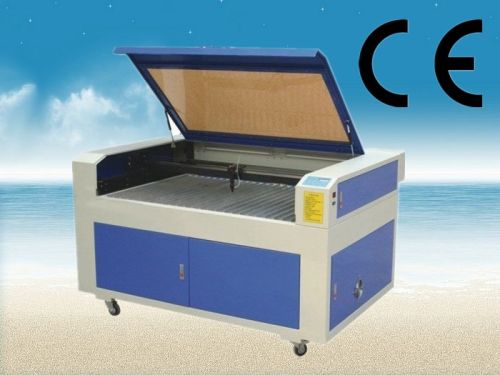

Laser CNC Router

Application: Laser Engraving Laser Type: Diode
color:blueSpindle power:2.2kw watercooling spindle
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Model MS-1315 X-Y-Z axis working area 1300 * 1500* 100mm Table Structure Aluminum extruded sections Processing precision ±0.05mm X-Y -Z structure Ball screw drive/Germany Table Size ....

View More Details

Send Enquiry

Product Details

Model
MS-1315
X-Y-Z axis working area
1300 * 1500* 100mm
Table Structure
Aluminum extruded sections
Processing precision
±0.05mm
X-Y -Z structure
Ball screw drive/Germany
Table Size
1400*1600mm
Guideway
Square linear guide way
Max. processing speed
10m/min
Max power consumption
1.5kW water-cooling
Spindle speed
24000r/min
Drive motors
Stepper
Working voltage
AC 220V / 50Hz
Command code
G code
Computer interface
USB
Collet
ER25-12.7mm,6mm,3.175mm
Software Compatibility
Type3,Artcam,UcancamV8,Caxa
Control System
DSP (option: computer control system)
Running Environment
Temperature: -10-45°C
Relative humidity: 30%-75%
Equipment available
Oil lubrication system
Vacuum equipment
