Laser Cutter Cardboard Making Machinery

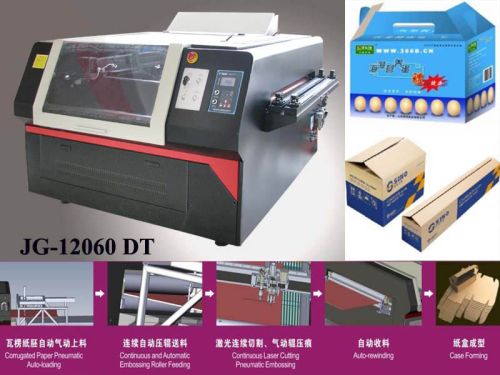

JG-12060 DT Professional Cardboard Forming Laser Cutting Machine
Corrugated paper pneumatic auto loading.
Continuous and automatic embossing roller feeding.
Continuous laser cutting pneumatic embossing
Auto rewinding
Case formating
Features：
1. With high degree of automation, this model can do integrative process of auto-feeding, cutting and auto-unloading.
2. Splicing images with high precision.
3. Equipped with auto-pinch roller device, while in the high speed and precise cutting, it can do laminate lines processing in any angle and any length according to different cutting designs.
4. Compared with traditional die-cutting machine, it has better effects, high efficiency and more complete functions.
5. Especially suitable for packing materials cutting like corrugated cartons, paperboard, etc.
Application Fields:
Suitable for cutting cardboard, paperboard, carton board, corrugated paper, corrugated cartons, folding cartons, etc.
Laser Tube CO2 Hermetic and detached laser tube
Laser Power 65W/80W/100W/150W
Cutting Area 1200mmX600mm
Cutting Table Strip panel working table
No-load Max Speed 0-24000mm/min
Repeat Location Accuracy ± 0.1mm
Feeding Speed 0-60000mm/min
Motion System Offline stepping control system
Cooling System Water cooling and protection system
Power Supply AC220V ± 5% / 50Hz
Format support AI, BMP, PLT, DXF, etc.
Standard Collocation 550W up & down exhaust fan, mini air compressor
Optional Collocation Hermetic and detached CO2 laser tube (65W/100W)
CO2 RF metal laser tube,
Automatic control high pressure blower valve,
Constant temperature water-chiller,
Servo system
