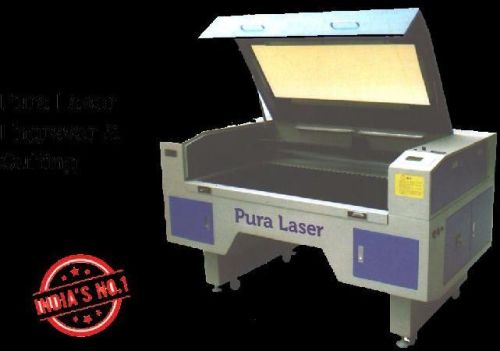

Laser Cutting Engraving Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Features : 64 DSP high speed processor: Adopts 64 DSP high speed control system, which highly improved the data processing speed and stability. Support of USB and U disc: USB connect to the....

View More Details

Send Enquiry

Company Information

Sidharth Machineries

22 Godam, Jaipur, Rajasthan

View Number

Member Since 12 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Features :

64 DSP high speed processor: Adopts 64 DSP high speed control system, which highly improved the data processing speed and stability.
Support of USB and U disc: USB connect to the machine or U disc independently, which can use only one computer to control many laser machines.
Storage function: Large storage function, which can store hundreds of files for offline operation.
Real time regulation: Users can regulate the laser power according to needs to improve the enraging effect.
Easy operation: Control Panel and software have both English and Chinese language so that satisfies the needs of different customers.
Rotary clamp for engraving cylinders (optional) Can engrave not sheets, but also materials and cylinders such as p3encil vase, flute, bottle and so on.

Application for Industry

Advertising signs and logos, craft and gift, crystal ornaments, paper cutting techniques, relief, the printing plate, leather, clothing, embroidery, decoration, frame products.

Applicable Materials

ABS double color sheet, acrylic sheet, wood, glass, paper, leather, cloth, plastic, rubber, marble, ceramic tiles and other nonmetallic materials.

Technical Specialty

Product Model	GS6040/GS9060/GS1280/GS1490/GS1612/GS1910
Laser type	Hermetic and detached CO2 laser tube
Laser power	60W/80W/100W/120W/150W
Cutting speed	0-36000mm/min
Engraving speed	0-64000mm/min
Resetting positioning accuracy	0.01mm
Resolution ration	0.025mm
Highest scanning precision	2500DBI
Graphic format	AL,CDR,BMP,JPG,DST,PLT,DXF,DWG,TIFF,PSD
Support software	Coral Draw, Photo Shop, AutoCad etc.
The smallest cutting characters	Character 2.0mm2.0mm,English 1.0mm1.0mm
Power supply	220V/50HZ
Whole power	<1000W
Operating temperature	00C-450C
Operating humidity	5-95% (Free of condensed water)
