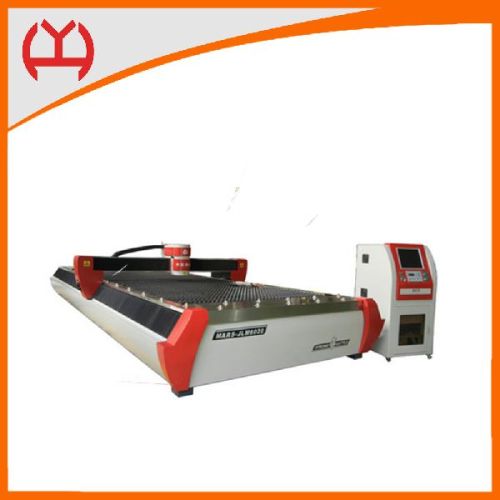

Laser cutting machine, Laser Power : 1000 W

₹ 13.58 Lakh / Set

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering laser cutting machine item model lm2513 lm3015 lm4020 effective size(mm) 2500*1250 3000*1500 4000*2000 max process height(mm) 90 effective stroke x axis(mm) 2550 3050 4050 y....

Company Information

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering laser cutting machine
item model
lm2513 lm3015 lm4020
effective size(mm) 2500*1250 3000*1500 4000*2000
max process height(mm)
90
effective stroke x axis(mm) 2550 3050 4050
y axis(mm) 1300 1550 2050
z axis(mm) 100
position accuracy x axis(mmm) ±0.03
y axis(mmm) ±0.03
z axis(mmm) ±0.01
repeated accuracy x axis(mm) ±0.02
y axis(mm) ±0.02
z axis(mm) ±0.005
fast positioning speed x axis(mmin) 72
y axis(mmin) 72
z axis(mmin) 15
max cutting speed 30mmin
max cutting thickness 6mmc s; 3mm s s
power consumption 6.8kwh
protection level ip54
machine weight(ton) 3.58 4.35 5.12
size l*w*h(mm) 3420*1785*1346 4116*2165*1346 5628*2950*1346.
