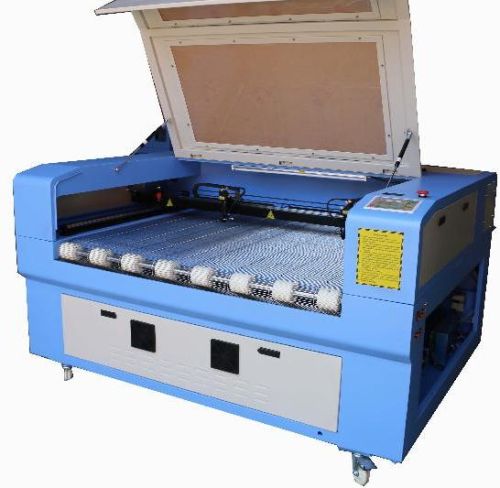

Laser cutting machine

Laser engraving machine, laser machine, acrylic cutting machine, acrylic engraving machine
1290 engraving machine parameters
و technical parameters:
product model yh-1290
processing format 1200x900mm
laser type glass chamber sealed co2 laser (in line with gb11748-89 standard) (optional rf excitation metal tube) wavelength 10.6um
  laser type glass chamber sealed co2 laser (in line with gb11748-89 standard) wavelength 10.6um
laser power 100w
the laser tube cools the pure circulating water to cool
energy adjustment 0-100% stepless control, the software internal 0-100% adjustable
control and drive high-speed dsp control, stepper motor high subdivision drive (optional servo drive)
engraving speed 0-900mm s
cutting speed 0-400mm s
working voltage 220v 50hz
positioning accuracy ≤ ± 0.01mm
minimum typed chinese characters 1.5mm english letters 1mm
machine power ≤ 1500w
processing format 1200x900mm
working environment temperature: 0-45 ℃ humidity 5% -95% (no condensate)
software support format plt, dst, dxf, dwg, ai, las can support autocad, coreldraw direct output.
