Laser Cutting Machine

Listing ID #399551

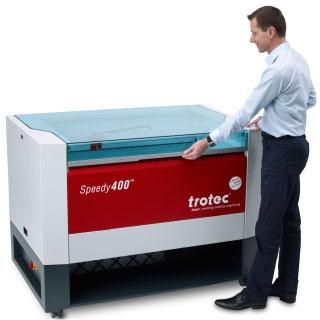

Our speedy 400 laser cutter machine gives a new dimension to laser engraving. The work area of our speedy 400 has been designed for standard material sizes of laminates, acrylic, and paper. Time and cost for cutting materials to size can thus be saved and the work sequence can be optimized. In addition, speedy 400 features maximum user-friendliness, economy, and flexibility. With the speedy 400, the tried-and-tested and successful functions of the speedy family have reached a new level. flexx upgrade for maximum flexibility every speedy 400 can subsequently be equipped with an additional laser source, and can thus be refitted to a speedy 400 flexx. As a result, trotec laser grows with the success of business entity. technical specifications

• overall dimensions (w x d x h) : 1400 x 950 x 1070 mm
• working area : 1000 x 610 mm
• max. Height of workpiece : co2 (305 mm), fiber (287 mm), flexx (296 mm)
• max. Processing speed : co2 (355 cm second, acceleration 4g), fiber (200 cm second, acceleration 4g)
• addressable accuracy : 5μm
• static repeat accuracy : < ±15μm
• mechanical design : fully enclosed chassis with double safety interlock system laser safety class 2, ce compliant maintenance-free, brushless dc servo motors in pack-technology
• laser design : sealed-off co2 laser from 40 - 120 watt, fibre laser with 10, 20, 30 or 50 watt
• weight : approx. 300 kg (depending on laser power)
• materials : acrylic, films & foils, foam, glass, leather, paper, plastics, rubber, stone, textiles, wood, metals (aluminium, bronze, chrome, coated metals, copper, gold, ss, titanium) etc.
