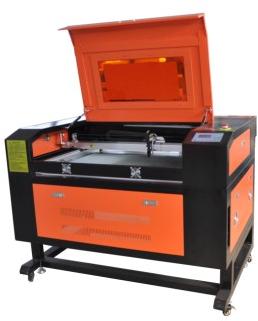

Laser Cutting Machine, Usage : Industrial

Name: laser engraving machine em690
processing area 900mm*600mm (3feet*2feet)
laser power 60w,80w
laser type: sealed co2 glass laser tube
cooling mode: water cooling and protection system
resetting positioning accuracy: ±0.01mm
compatible software: laser cut 5.3, coreldraw, autocad, photoshop
whole machine size: 1420mm*1020mm*1150mm
engraving speed 1-6000mm/min
cutting speed 1-1000mm/min
cutting thickness 0-20 mm acrylic (others determined by materials)
resolution ratio ≤0.0125mm
position system: red dot
interface: usb
minimum shaping character letter 0.8mm, chinese 2mm
support graphic format dst, plt, bmp, dxf
gross power 1000w
driving mode: dc0.8a 24v stepper motor
cooling mode: circulation water cooling
working voltage: ac 110 - 220v±10%, 50 - 60hz or depend on customer
operating temperature 0-45c
operating humidity: 5-95%
driving system stepper
option: up and down table, rotary attachment
packing: wooden box
guarantee time: 1 year, laser tube 3 months
option: rotary attachment for column materials
operation: video to tell customer how to operate the machine
net weight: 190kgs before package, 240kgs after package.
