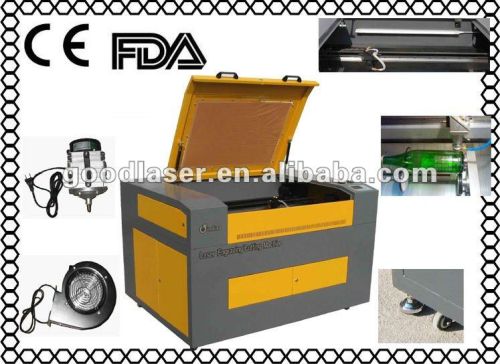

Laser Cutting Machine 400*600/ 600*900/ 900*1200

We are offering laser cutting machine. Acrylic CO2 laser cutting machine.
Main application:
Available materials: acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials
Comprehensive application: advertisement, arts and crafts, toys, textile garment, leather, car, mechanism, electron, building upholster, timekeeper and jewelery industry and so on.
Technical parameter:
Product model
JD4060
JD6090
JD90120
Maxi working area
400x600mm
600*900mm
900*1200mm
Machine dimensions
1400*900*1000mm
1850*1100*1000mm
2150*1400*1100mm
Gross machine weight(N.W)
200kgs
230kgs
280kgs
Laser Types
Hermetic And Detached CO2 Laser Tube
Laser power
60W, 80W, 100W, 150W, 180W
Engraving speed
0-75,000mm/min
Cutting speed
0-40,000mm/min
Laser output control
1-100% control panel and software setting
Location precision
Less than 0.01mm
Resetting positioning accuracy
Less than 0.01mm
Highest scanning precision
50-1000DPI
Power supply
AC 220V/50Hz
Operating temperature
0 - 45°C
Operating humidity
5 - 95%
Minimum shaping character
English 1×1mm
360°slope engrave
Yes
Driving system
stepper
Cooling mode
Water-cooling and protection system
Auxiliary Devices
Exhaust fan And Exhaust pipe
Software
Lasercut 5.3
Graphic format supported
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc
Compatible software
CorelDraw, AutoCAD, Photoshop
Color
We can change it according to the customer requirements
Optional parts:
Up&down working table
Motorized up&down working table 300mm
Rotary clamp
Rotary clamp: used for cylinder engrave
Water chiller-
Red pointer: tell you the exact position the laser head shoot
Red pointer
Water chiller: the cooling effect is much better than water pump, can also longer the laser tube’s life
Performance:
Ø Leading power control system
Ø Optimal import liner bearing with high precision
Ø The front and back running-through design, suitable for super-length material process
Ø Complete match and convenient usage assistant setting
Ø Honeycomb and aluminium strip different material worktable, which meet the needs of diversified laser procession
Ø Special design, friendly interface, easy opration and perfect function.
