Laser Cutting Machine, Driven Type : Electric

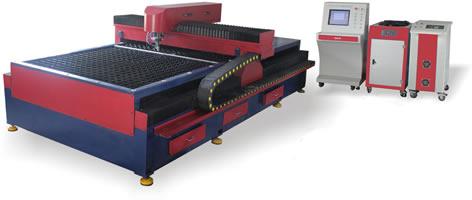

We are offering Nd:YAG Laser Cutting Machine for metal.
M-YAG-500
Product Features
1.Main parts: Laser Cutting body, peak power supply, water cooling machine, and controlling cabinet, nice instruction, easy to operate.
2.High cutting precision, good stability, adopts precise ball bearing guide rear , advance numerical controlling system, can process accurate components, what’s more, it can keep a stable performance while under long time work.
3.With smooth cutting edge, adopt automatic moving cutting head, can moved smartly according to the surface of the cutting boards, the cutting edge is smooth and nice, has no need to reprocess afterwards.
4. With large cutting scale, widely usage, can cut stainless steel up to 3mm, carbon steel 6mm, the working area is up to 3m*1.5m, the applicable materials includes: carbon steel , stainless steel, aluminum, copper, titanium etc.
5.Price performance ratio is better than other cutting machines, when cut thin boards, it can instead of CO2 laser cutter, CNC cutting bed and plate shears.
Main application
Widely used in processing thin metal board, was mainly choose by metal processing, advertisement, kitchen ware, lamps and hardware industry.
Technical data
Item data
Model C-YAG-500
Wavelength 1064nm
Max laser power 500W
Cooling system 5P
Max cutting area 3000x1500mm
X/Y axis position accuracy +/-0.05mm/m
X/Y axis moving speed 8m/min
X/Y axis cutting speed 5m/min
Minimum line width 0.2mm
Max cutting thickness Stainless steel 3mm,
carbon steel 6mm
Applicable materials Stainless steel, carbon steel,
aluminum, copper, titanium etc.
Floor space 5x5m
There are too many items and models and welcome to call us or send us an email if you have any further enquiry or question!
If you are interested in our products and other laser parts, optical parts, please send email to 705@518168.cn
