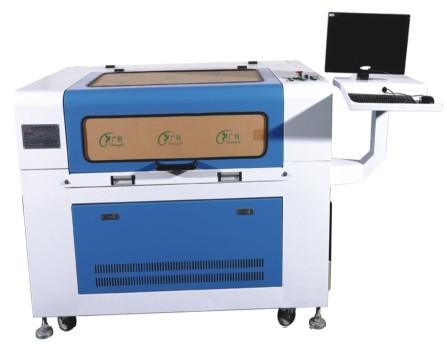

Guanli Laser Cutting Machine

We are offering GL-960 (1080) CCD Type Trademark and Woven Label Cutting Machine.
Adopt advanced international identification technology to find out the label edge cutting line or orientation by itself. It can self-display moving pictures constantly to cut the label on the whole board, which increased the high level cutting accuracy and production efficiency a lot. The utilization of photography orientation system indicates the unification of laser technology, automatic technology, and human vision wisdom technology. It provides strong support for improving customer's production ability and efficiency.
Laser power 80W
Cutting speed 0~4000 mm/min
Resolution ratio 0.025mm
Power AC220V +/- 10%, 50HZ
Photography Method Automatic moving style photography by line constantly (CCD camera)
Orientation precision +/- 0.01 mm
Operation temperature 0 ~ 45 deg C
Cooling device Constant temperature device
Supported formats BMP; HPGL(PLT); JPG; PCS; PGA; DST; DXP; DXF; DWG; CDR
Functions
Adopt advanced international identification technology to find out the label edge cutting line or orientation by itself. It can self-display moving pictures constantly to cut the label on the whole board, which increased the high level cutting accuracy and production efficiency a lot.
The utilization of photography orientation system indicates the unification of laser technology, automatic technology, and human vision wisdom technology. It provides strong support for improving customer's production ability and efficiency.
St series automatic photography orientation cutting machine receives pictures into the computer through vision system during work time. After treatment, it can operate self-searching and make correct orientation to start cutting, which can avoid the user tired of operation problem because of incorrect orientation.
St fast speed constant curve cutting gets benefits from the strict co-operation among the wonderful data treatment ability of high end DSP technology, special design computer software, and precision machine system. Under the fast speed running condition, cutting line won't get distortion.
Appliance materials: leather, cloth, rubber, bamboo, bag, garments, shoes.
Appliance area: this machine is applicable for garment, leather, cloth material toy, computer embroidery cutting, jeans, label, mould cutting, paper products.
