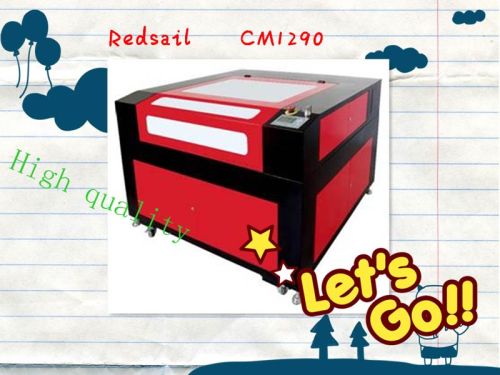

REDSAIL Laser Cutting Machine

High quality! 80w/100w&laser cutting machine for acrylic,wood,leather cm1290 &(1200mm x 900mm) with double side open door
redsail laser cutting machine and laser cutter is designed for industry application, driven by high-grade stepper motor, precision guide way drive and high-precision in positioning make the running more stable, large area precision cutting mechanical movement system can guarantee smoothness and flatness of cut cross section. The laser power of redsail laser cutter is from 60w to 150w.
Technical parameter
model
cm1290
laser tube
water cooling sealed glass co2 laser tube
control system
32 bit dsp
memory
256m flash memory on main board
drive type
micro stepping motor
laser power
60w~150w
work size(mm)
1200 x 900 (with double side open door)
max speed
1200mm/s
software
easycut5.3
image form
plt, dxf, bmp, ai, dst
resolution
1000 dpi
repeatability
0.01 mm
interface
usb2.0 and usb disk
power
110~240v/ 50~60hz
warranty
12 months (3 months for laser tube and 3 months for mirrors)
machine dimensions (mm)
1800*1360*1060
package dimensions (mm)
1940*1800*1260
applicable materials:
non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
applicable industry:
billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
main feature
professional design ideas,customized for the users in different industries,elegant appearance and practical.
Professional moving control design,adopt advance three-phase stepping motor and good transmission system,high speed and precision.
Complete function,safe and stable, exclusive no water warning and automatic protection system,to protect the working life of the laser tube effectively .the power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
Electronic control lift platform,easy to feed front and back, easy and flexible to operate,can engrave materials with different heights.
Adopt the aviation light path system, imported linear guide rail,to guarantee the smoothness of the light knife moving and high engraving precision.
Red light positioning system realizes the high positioning without laser.
guarantee and after sales service
.one year free warranty,main parts are free of charge when problems happened during the guarantee period,6 months for laser tube and mirorrs.
.life time free maintenance service.
.free training course at our factory with professional engineers.
.we provide the consumable parts at agent price when you need replacement
.24 hours online service each day,free technical support with different languages.
.we provide door to door technical support to agents,if neccessary.
