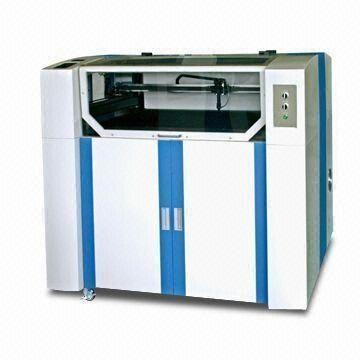

Laser Cutting Machine, Frequency : 50 Hz

High precision laser cutting machine features:
Adopts international advanced closed radio frequency CO2 laser source, the beam effect and stability is excellent. Mechanism organ applies imported high precise screw transmission, and both sides with AC servo motor, improves the stability under high speed move. The precision of cutting is strongly assured, the high performance servo motor and drive mechanism enhance the improve speed and precision of the dynamic motion. The controlling system adopts high speed software controlling technology, adding the special motion controlling slug, the curve cutting function is successive and fast, and the short cutting function is excellent. The electrical design adopts industrial standard, highly improved the stability and anti-interference. The high precision imported optical components is with good focus and reflect effect
Specifications:
Maximum laser power: 50/30W (customized)
Repeat frequency: ≤20kHz
Wavelength: 10,600nm
Cutting precision: +0.05mm
Maximum cutting speed: 8,000mm/min （depends on the materials）
Cutting area: 900 x 600mm
Consumed power: ≤2kW
Electrical requirement: 220V/50Hz/30A
Cooling system: water chiller or fan
Applications:
Suitable for rubber, plastic, plexiglass, leather, ceramics, crystal, jade, bamboo ware, wooden ware, paper, acrylics, non-metal material. It can be widely used in leather, wood, textile, rubber, crafts gifts, glasses, printing, medical packaging, food and mobile display. We can design automatic solutions based on customers special requirement.
