Laser Electrostatic Copier

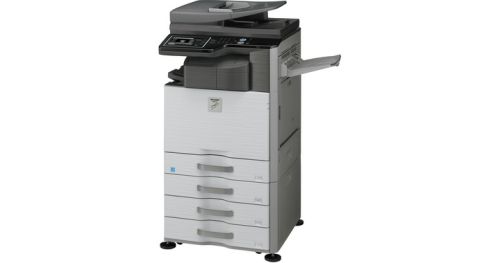

Name MX-2314N/MX-2614N/MX-3114N
 Type Desktop
 Colour Full colour
 Copier system Laser electrostatic copier
 Scanning resolution
 Scan (B/W): 600   600 dpi, 600   400 dpi, 600   300 dpi
 Scan (full colour): 600   600 dpi
 Print: 600   600 dpi, equivalent to 9,600 dpi   600 dpi
 Gradation Scan: equivalent to 256 levels / Print: equivalent to 256 levels
 Original paper sizes Max. A3 (11" 17") / sheets, bound documents
 Copy sizes
 A3 wide (12"   18") to A5R, 5-1/2"   8-1/2"R, Transparency film, Heavy
 paper, Envelopes
 Tray 1-4: A3, B4, A4, A4R, B5, B5R, A5R, 11"   17", 8-1/2"   14",
 8-1/2"   13-1/2", 8-1/2"   13-2/5", 8-1/2"   13", 8-1/2"   11",
 8-1/2"   11"R, 7-1/4   10-1/2"R, 5-1/2"   8-1/2"R
 Multi-bypass tray: A3 wide (12"   18") to A5R, 5-1/2"   8-1/2"R,
 Transparency film, Heavy paper, Envelopes
 Lost margin (leading edge): 4 mm (11/64")   1 mm (  3/64")
 Lost margin: (trailing edge): 2 mm (6/64") - 5 mm (- 13/64")
 Leading edge / trailing edge: total 8 mm (21/64") or lessNear edge /
 far edge: total 4 mm (11/64")   2 mm (  6/64") or less
 Warm-up time
 MX-2314N MX-2614N MX-3114N
 19 seconds 18 seconds 18 seconds
 ? This may vary depending on the ambient conditions.
 First-copy time
 MX-2314N MX-2614N MX-3114N
 Full colour: 10 seconds 8.1 seconds 7.9 seconds
 B/W: 7.4 seconds 5.9 seconds 5.8 seconds
 ? This may vary depending on the state of the machine.
 ? Portrait feeding of A4 (8-1/2" x 11") sheets.
 Continuous copying speeds*
 (when shifter is not in operation)
 MX-2314N MX-2614N MX-3114N
 A4, B5, 8-1/2"   11" 23 copies/min. 26 copies/min. 31 copies/min.
 A4R, 8-1/2"   11"R, 15 copies/min. 19 copies/min. 20 copies/min. B5R, 7-1/4"   10-1/2"R
 B4, 8-1/2"   14" 13 copies/min. 16 copies/min. 17 copies/min.
 A3, 11"   17" 11 copies/min. 14 copies/min. 15 copies/min.
 * Continuous speed for same original source. Output may be temporarily interrupted to stabilize image quality
 Copy rations
 Same size: 1:1   0.8 % Enlarge: 115 %, 122 %, 141 %, 200 %, 400 %
 Reduce: 25 %, 50 %, 70 %, 81 %, 86 %
 Zoom range: 25 to 400 % (25 - 200 % using RSPF) in 1 % increments,
 total 376 increments.
 Paper feed / capacity 500 sheets in one tray plus 100-sheet multi-bypass tray
 ? Using 80 g/m2
  (21 lbs.) weight paper
 Max. paper feed / max. capacity 3,100 sheets in 4 trays plus 100-sheet multi-bypass tray
 ? Using 80 g/m2
  (21 lbs.) weight paper
 Continuous copy Max. 999 copies
 Storage
 HDD: 320 GB*
 ? 1 GB = One billion bytes when referring to hard drive capacity.
 Actual format capacity is less.
 * On the MX-2314N, the productivity kit is required.
 Ambient environment 10  C (54  F) to 35  C (91  F) (20 % to 60 % RH)
 10  C (54  F) to 30  C (86  F) (85 % RH)
 Required power supply
 Local voltage   10 % (For the power supply requirements, see the
 name plate in the lower corner of the left side of the machine.)
 Power consumption Max. 1.84 kW (220-240 V) / 1.44 kW (100-127 V)
 (including options such as the desk)
 Dimensions
 MX-2314N: 583 mm (W)   642 mm (D)   834 mm (H)
 (22-61/64" (W)   25-9/32" (D)   28-3/16" (H))
 MX-2614N/MX-3114N: 608 mm (W)   642 mm (D)   834 mm (H)
 (23-15/16" (W)   25-9/32" (D)   28-3/16" (H))
 Weight MX-2314N: 72.6 kg (161 lbs.)
 MX-2614N/MX-3114N: 76.2 kg (168 lbs.)
 Overall dimensions
 MX-2314N: 850 mm (W)   642 mm (D) (33-15/32" (W)   25-9/32" (D))
 (With multi-bypass tray extended)
 MX-2614N/MX-3114N: 875.5 mm (W)   642 mm (D)
 (34-15/32" (W)   25-9/32" (D))
 (With multi-bypass tray extended)
