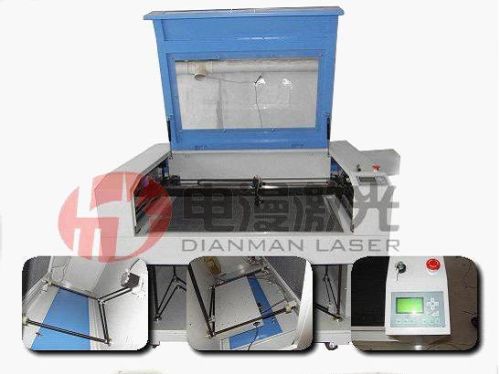

Laser Engraving Cutting Machine

We are offering co2 laser engraving cutting machine.
this machine adopts imported high-speed mute linear guide.liner rail are zero wear,slider of bearing wear can adjustable compensation.rail,belt and aluminium profile are integrated design,be more save place.and to better ensure the blance of linear guides,very beautiful outward appearance,more easy maintenance.laser machine compatible electric lift platform,adjustable height: 260mm our laser machine also with autofocus function.professional moving control design , adopt advance three-phase stepping motor and good tansmission system , operational speed,laser energy real-time tunable, and very easy for customers to operate.machine uses usb port to transmit data,equipped withlarge-capacity internal memory, improving working speed and efficiency greatly.complete function , safe and stable , exclusive complete water protection system , to protect the working life of the laser tube effectively .the power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best . Red light positioning system realizes the high positioning without laser .adopting the honeycomb platform, easy for small materials engraving and cutting.also have strip shape platform for optional ,which can bear heavier materials such as organic glass, wood and so on.(optional) doublehead adoption enhances processing speed twice. Our laser power testing can make sure the two laser tubes inside have same power so that the materials. Both sides have the same effect.and also with the function for auto-focal (optional) .our laser engraver cutting machine with fda certification.
model dm.6090
laser tube water cooling co2 sealed glass
control system 32 bit dsp
laser head co2 laserhead
drive type microstepping stepper motor system
electric lift platform adjustable height: 260mm
auto focus optional
laser power 60w (80w/100w for optional)
work area (mm) 600x 900
max speed 1000 mm/s
image form plt, dxf, bmp, ai, dst
resolution 2500 dpi
double head optional
pc interface usb2.0 and usb disk
red dot pointer optional
accessories air assistant, exhaust system, water
power 110v or 220-240v/ 50~60hz
warranty 24 months
machine size wxdxh (mm) 1500*1060*1140
g. W. (kg) 430
we are one of the leading laser manufacturer specialized in manufacturing and marketing co2 laser engraving cutting machine 3050,co2 laser engraver cutter 5070,co2 laser engraving cutting machine 6090,co2 laser engraver cutter 1080,co2 laser engraving cutting machine 1290,co2 laser envraving cutting machine 1490, co2 laser engraver cutter 1690,co2 laser cnc engraving cutting machine 1325, co2 sealed glass laser tube 100w,co2 glass laser tube 130w,co2 sealed glass laser tube 150w , co2 refillable laser tube,co2 laser tube inflatable instruments ,diode side-pump laser marker marking machine,yag laser metal cutting machine 300w and yag laser metal cutting machine 500w,etc.
also our facotry are successfully developed refillable co2 laser tube,replace the traditional co2 laser tube,self-inflation system,3years span life,for detailed information,pls check our website.
