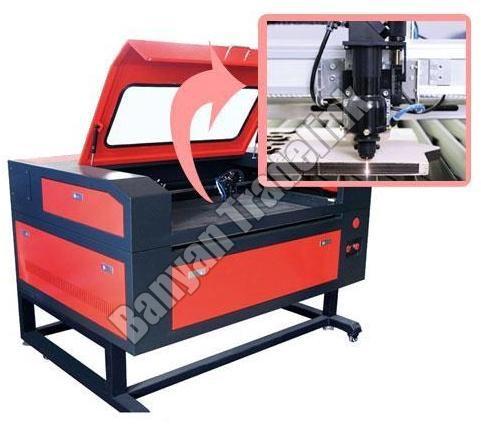

| Model | YD-1280 / YD-1290 |
|---|---|
| Working Area | 1200mmX800mm / 1200mmX900mm |
| Laser Power | 100W (130W - Optional) |
| Laser Type | Hermetic co2Tube |
| Power Supply | AC220±10% 50HZ/AC 110±10% 60HZ |
| Max Moving Speed | 0---60000mm/min |
| Worktable | Honeycomb Worktable / Up-Down Worktable/ Aluminum knife (Optional) |
| Locating Precision | <0.01mm |
| Min Shaping Character | Character:2X2mm,letter:1X1mm |
| Operating Temperature | 5oC-35oC |
| Resolution Ratio | ≤4500dpi |
| Control Configuration | DSP |
| Data Transfer Interface | USB(offline) |
| System Environment | Windows 2000 / Windows XP / Vista / Win7 |
| Cooling Way | Water Cooling & Protection System |
| Graphic Format Supported | The files which Corel Draw, Photoshop, Auto CAD can identify (BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF, PAT, CDT, CLK, DEX, CSL, CMX, AI, WPG, WMF, EMF, CGM, SVG, SVGZ ,PCT, FMV, GEM, CMX) |
| Compatible software | Corel Draw, Auto CAD |
| Cutting Thickness | 0---10mm (Depends On Different Materials) |
| Color Separation | Separation of Cutting Up to 256 colors |
| Sloping Engraving | Yes, Slope Can Be Designed Discretionarily |
| Cuts off the Water Supply the Protection | yes |
| Optional Parts | High-Grade Cooling System / Imported Focus Lens / Double-Head / Cylinder Rotary Attachment / Irregular Rotary Attachment |
