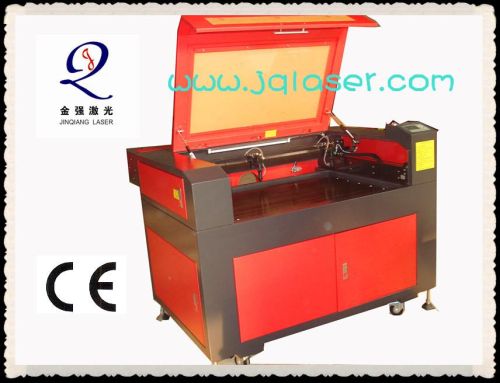

Laser Engraving Machine, Packaging Type : red&black, blue&white

performance Features
1. Configure higher power laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision.
Technical Parameter
Item / Model JQ-9060
Cutting area 900 x 600mm
Laser power 80w
Laser type CO2 sealed laser tube,water-cooled,10.6um
Engraving speed 0-60000mm/min
Laser Output 1-100%software setting
Resetting positioning accuracy ≤±0.01mm
Power supply 220V/50HZ , 110V/60HZ
Operating temperature 0 - 45°C
Operating humidity 5 - 95%
Min. shaping character English 1.0 x 1.0mm
Graphic format supported BMP, PLT, DST, DXF, AI
Software supported TAJIMA, CorelDraw, Photoshop, AutoCAD
Driving system 2 phases stepper motor
Cooling mode Water-cooling and protection system
Equipment Dimensions 1450x1100x1070mm
Net Weight: 230kg
Shipping Dimensions 1500 x 1110 x 1300mm
Optional Spare Parts Up-down clump, Rotary System, Honeycomb table
Recommended Spare Parts Laser Tube and Lens
Application Field
Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry
