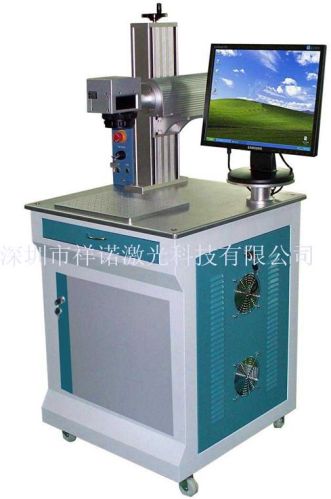

Laser Marking Machine, Laser Engraving Machine (xn-FM-10w)

Cnc machine, fiber laser, marking laser, laser machine, yag laser, laser marking, laser etching, engraving machine, marking machine, laser engraving machine, laser marking machine, laser marker, fiber laser machine, optical fiber laser marking machine, laser equipment, marking, metal laser marking machine, metal laser marking, metal marking machine, laser marking system, fiber laser marking. It uses german ipg fiber laser output, then realize marking function through import laser scanning galvanometer system.
electromechanical light conversion efficiency of optical fiber laser marking machine is very high, even to reach above 20% (yag around 3%), so it can save much electric energy. Optical fiber laser marking machine applys air cooling which has good performance of cooling way, the compact, good quality of output beam, and resonator no optical lenses, with avoided adjustment, free maintenance, high reliability etc. Performance.
it is widely used in plastic keyboard, plastic buttons, charger, cell phone pervious to light keys etc. Marking job. It is especially suitable for some higher fields in depth, smoothness, precision, such as clocks and watches, mold industry, bitmap marking, etc.
advantages
1. Its processing speed is a traditional laser marker 2-3 times which is very fast. Electromechanical light conversion efficiency of optical fiber laser marker is very high, the power consumption is less than 500w which is 1/10 of a lamp pumped solid laser marking machine, so it can save energy consumption expenditure.
2. Its beam quality is much better than traditional solid laser marker and it is base model (tem00) output and its focusing flare diameter is less than 20um. Divergence angle is 1/4 of laser diode pumped. It is especially suitable for fine, precision marking.
3. The function of marking software is powerful, is compatible coreldraw, autocad, photoshop etc. Software files; support plt, pcx, dxf, bmp, etc, can use directly shx and ttf fonts; support the automatic coding, print serial number, batch number, date, bar code, two dimensional barcode, automatic jump number, etc.
areas of application:
optical fiber laser marker has already been used in electronic industry and automobile industry, tools and measuring tools, aerospace, instrumentation, packaging industry, medical products, household appliances, keyboard, panel, advertising signs, certificates cards, daily articles, diamond jewellery, etc.
1. Applicable industries: mobile phone key-press, plastic pervious to light buttons, electronic components, integrated circuit (ic), electrical appliances, communication products, sanitary ware, tool accessories, cutting tools, glasses clocks and watches, jewelry, auto parts, bags decorative clasp, cookware, stainless steel products, etc.
2. Applicable materials: any metal (including rare metal), engineering plastic, electroplating materials, coating material, coating materials, plastic rubber, epoxy resin, ceramics, etc
laser marker technology parameter:
type: xn-fm-10w
biggest laser power: 10 w
laser wavelength: 1064nm
power adjustment range: 0-100%
beam quality: m2
laser repeat frequency: 20- 80khz
marking scope: 100 x 100mm
marking depth: ≤ 0.2 mm
minimum focusing flare: 0.005 mm
minimum character height: 0.15 mm
maximum linear marking speed: 12000mm/s
standard sculpture range: 100mm x 100mm
matching sculpture range: 50 x 50 150mm x 150mm
control interface: usb
laser module life: > 100000 hours
repeat precision: ± 0.001mm
the power consumption:
electrical source: 220v± 22v / 50hz / 12a
galvanometer scanning galvanometer: high performance
cooling mode: high-precision temperature/closed loop cooling
appearance size: 410mmx 650mm xx 1200mm
weight: 150kg
