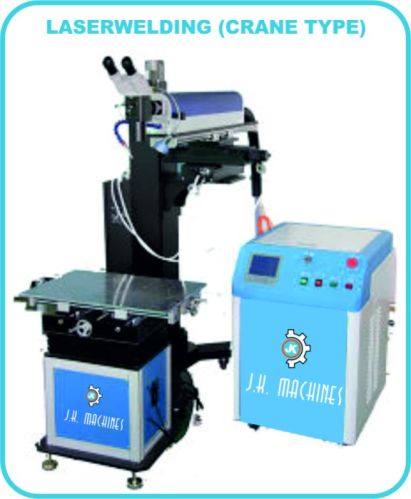

9-12kw Laser Welding Machine, Automatic Grade : Semi Automatic, Color : Blue

Listing ID #6976937

Get Latest Price

MOQ 1 Piece
Country of OriginIndia
Machine StructureHorizontal
Brand NameJ. K. Machines
ColorBlue
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Country of Origin India
Machine Structure Horizontal
Brand Name J. K. Machines
Color Blue
Automatic Grade Semi Automatic
Power 9-12kw
Operating Type Semi Automatic
Type Laser Welding Machines

Salient Features

High Accuracy, the welding rod diameter is 0.20 - 0.60 mm.
Little affect area, no distortion of the processing parts.
No etching effect after welding, low oxidation rate, the color of the processing parts is intact.
No blow holes appeared after welding.
Can process at the welding point, especially applicable to repair moulds & dies.
Laser welding can be done on hard parts hardness up to 50-60 HRC.

Applicable to Material and Field

Laser welding can be used in weldingSS, H13, D2, D3, SKD11, SKD61, P20, STARVAX, ALUMINUM, COPPER, EN31, NICKEL etc.

Type of Table

Manual
Motorized
Automatic

Salient Features

High Accuracy, the welding rod diameter is 0.20 - 0.60 mm.
Little affect area, no distortion of the processing parts.
No etching effect after welding, low oxidation rate, the color of the processing parts is intact.
No blow holes appeared after welding.
Can process at the welding point, especially applicable to repair moulds & dies.
Laser welding can be done on hard parts hardness up to 50-60 HRC.

Applicable to Material and Field

Laser welding can be used in weldingSS, H13, D2, D3, SKD11, SKD61, P20, STARVAX, ALUMINUM, COPPER, EN31, NICKEL etc.

Type of Table

Manual
Motorized
Automatic

Structure of Machine

Normal
Crane Type

Technical Specification

Technical Specification		JKW-200	JKW-400
Average Laser Power	w	200	400
Max. Laser Power	w	240	440
Max. Energy of Single Pulse	j	75	90
Laser Wave lenght	nm	1064
Pulse Width	ms	0.30 - 20
Laser Welding Frequency	Hz	0.50 - 100
Spot Size Range	mm	0.20 - 2.00
Welding Size	mm	0.10 - 0.40	0.10 - 0.60
Input Power Supply	v	220v Single Phase 50Hz	380v 3 Phase 50Hz
Power Consumption	kw	6	15
Water Pressure Protection	mpa	0.025
Cooling Water Temperature	degree	35
Temperature Protection	degree	45
Cooling Water Flow	L/min	10
Cooling Way		Water Cooling
Laser Type		Pulse
Machine Over all Dimension	mm	1000 x 600 x 1500
Machine Over all Weight	kg	300
