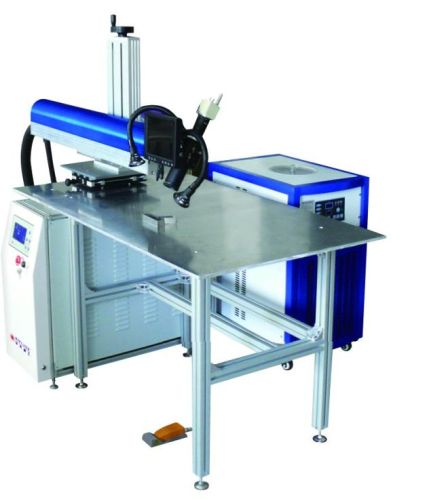

Laser Welding Machine, Brand Name : OPTIMA

we offer Laser Welding Machine.
Data:
WY-200HZ Model WY-200HZ
Mechanical Parts optical bench extension range 750mm Rotary 90℃
X,Y,Z Working Process 750*1000 mm
Table Bearing Limit ≦200KGS
Voltage Supply 220V±10%/50/60Hz or 380V±10%/50/60Hz
Laser Model Nd :YAG impulsive lamp
Spot Adjust range 0.1--0.3MM
Spot range 0.2--3.0MM
Laser Wave Length 1064 MM
Pulse Width ≦15M/S
Max Laser Power 200W
Pulse Frequency ≦15Hz
Laser Output Focus 110MM/150MM(Optional)
Laser Cooling System Water cooling
Observation System CCD or Microscope
Up and Down Process 300MM
Horizontal process 200MM
Functions and Applications :
Features Red light can automatically rapid check the welding point ,observing directly through the CCD or alter microscope.
Fast speed processing , professional fixed-focus clamp,rapidly testing the welding point by automatic focus without CCD and Microscope
with the superfine locating rod inside,the light-spot doesn't need to adjust its positions in the turning points of the characters.
Applications Suitable for various Fine words , Titanium words , Metals plate painting words (stainless steel plate, iron plate, galvanize plate ) , Advertising and Sign words and different Metal signs and LED letter’s shell welded.
Packing Size:
Packing Length Width Height Unit
Size 8 1.3 1.5 M
Volume 2.5CBM
Service:
Warranty One year
Technical Support All Life ( If machine is blocked, please contact us immediately and we will arrange for technical engineer to solve).
Trading Terms:
Payment Terms T/T , L/C, Western Union
Delivery Terms FOB Shanghai
Payment Condition By T/T , 30% as deposit before shipping pay off the balance.
Packing Exported Standard Pack
Supply Capacity 200Sets / Month
Price FOB Shanghai USD6,800.00
