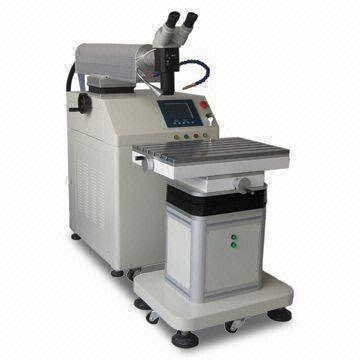

Shenzhen 1064 Laser Laser Welding Machine

Principles:1064-MW serial laser welding machine is special for repairing of small and medium mold and machinery parts. The machine is appliance of laser part deposition technology in tools and mold field. It can be used to amend the fault in production or special tools, it also can be used to repair the damage mold under production, this can length the life time of mold.
Molding mold, punching mold and laminating mold can be repeat repaired regularly.
Applications:
It apply all the metal and alloy such as die steel, stainless steel, aluminum, copper, zinc, gold, silver, chrome, nickel, titanium and more
Features:
Small welding spot diameter, small heat-affected zone, applicable for small and precise geometric area
No bubble and trachoma produced, directly grinding, polishing and wrinkle treatment after welding
No substrate deformation and collapse, no strength reduction and cracks after welding
Welding is facility and fast, no need warm-up, can weld directly on workpiece or machine, no need separation
The laser head can dolly move, up and down move and rotary move. The Z axis apply precision motor organ it is better for medium mold repairing
Specifications:
Max laser power: 150W/200W/300W
Laser medium: YAG
Wavelength: 1064nm
Minimum spot diameter: 0.2mm
Minimum weld pool: 0.1mm
Welding depth: 1.5mm x 2.5mm
Pulse width: 0.1ms to 20ms
Pulse frequency: 1 to 50Hz
Power supply system: Singlechip
Monitor: Microscope
Additional aiming system: CCD and display
Work table travel dimensions (mm): 300 × 200 × 300
