Contact SupplierWe are offering Latching Relay.

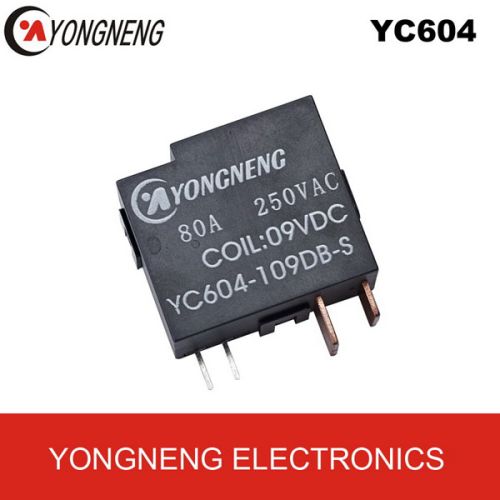

magnetic latching relay item no. Yc604
contact data
model no. yc604
contact arrangement 1a, 1b
contact resistance 1.5mω max.
Contact material silver alloy
contact rating (resistive load) 80a 250vac
max.switching current 80a
max.switching voltage 250vac
max.switching power 20000va
mechanical endurance 100000 ops
electrical endurance 10000 ops
coil data
nominal coil voltage (vdc) 5,6,9,12,24,48
nominal operating power 1.0w 2.0w
characteristics
operate time 20ms max.
Release time 20ms max.
Insulation resistance 1000mω max.
Dielectirc strength "between open contacts: 1500vac, 50/60hz 1min.
Between coil&contacts: 4000vac, 50/60hz 1min."
vibration resistance "destructive: 10-55hz, double amplitude of 1.5mm
functional: 10-55hz, double amplitude of 1.5mm"
shock resistance "functional: 10g min.
Destructive: 100g min."
ambient temperature -40c-70c (not condensing)
weight approx.45g
