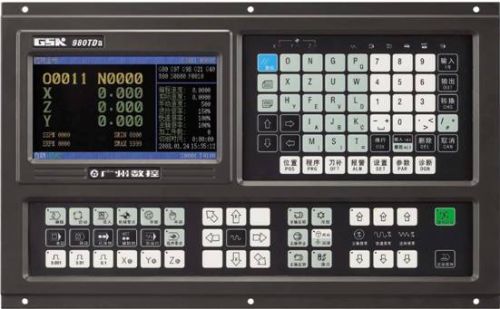

Lathe CNC Controller, Brand Name : CNCmakers

Gsk980tdb lathe cnc controller system from cncmakers limited.
gsk980tdb(upgraded from gsk980tda) cnc turning centerlathe controller: 2 analog spindle plus 5 feed axes (including c axis), lcd with graphics display, 0.001mm distinguishability, plc ladder program, 2 axes line arc interpolation, dnc communications
1-five axes of x, z, y, 4th and 5th control, the axial name and type of y, 4th and 5th can be defined.
2-2ms interpolation cycle, precision of 1um or 0.1um can be selected.
3-maximum speed 60mmin (when it is 0.1um, the maximum speed is 24mmin).
4-adapted servo spindle can realize spindle continuous position, rigid tapping, rigid screw processing
5-built-in many plc programs, the current running plc program can be selected
6-g71 command supports the cycle cutting of groove shape outline
7-support the programming of macro command in sentence type and the calling of macro program with parameter.
8-support programming in metric systeminch system, with function of auto tool-setting, auto chamfering, tool life management.
9-display in chinese, english, spanish or russian, which is selected by parameter.
10-with usb interface, it supports file operation in flash disk, system configuration and software upgrade.
11-analog voltage output of 0v~10v in two channels, support double spindles
12-electrical mpg input in one channel, it supports hand electrical mpg.
13-common input in 40 pointscommon output in 32 points
14-overall installation dimension and the command system are completely compatible with gsk980tda.
15-number of control axes
16-number of control axes: five axes (x, z, y, 4th and 5th )
17-number of linkage axes: three axes
18-number of plc control axes: four axes
19-feeding axes function
20-minimum command unit: 0.001mm or 0.0001mm is selectable
