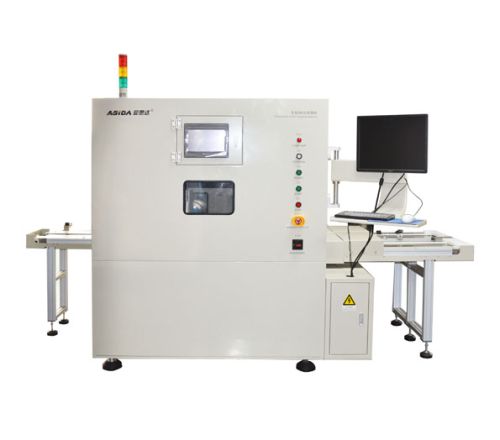

Layer-built Battery Online X-ray Inspection Equipment XG5200D

Layer-built Battery Online X-ray Inspection Equipment XG5200D X-ray machines Usage The X-ray is emitted by a generator,penetrates through the battery. It is received and taken pictures by imaging system. Software automatic sort qualified NG product by processing and measurement the pictures. Product features Features 1. Automatic sorting  Automatic detection and sorting OKNG products. 2.Real-time monitoring Real-time monitoring the state of all actions, signal, hardware. And show on the software interface. 3.Images and data real-time online display. Test data and images of many parts of the same battery is shown in the same software interface, convenient observation recognition. 4.Safety protection The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards. Parameters X-ray Tube Tube Voltage MAX 110KV Tube Current MAX 450uA Focal Spot Size 5μm Cooling Mode Strong wind cooling Image-forming  System Field of View Range 4"6" Resolution 80lpcm Camera Resolution 752*480pixels Detection Precision Repeat accuracy 60μm Efficiency Detection Efficiency ≥6ppm False Rate ≤2% Missing Rate 0.0% Excellent Products Rate ≥99.5% Safety Standard International Radiation Safety Standards ≤1usvhr
