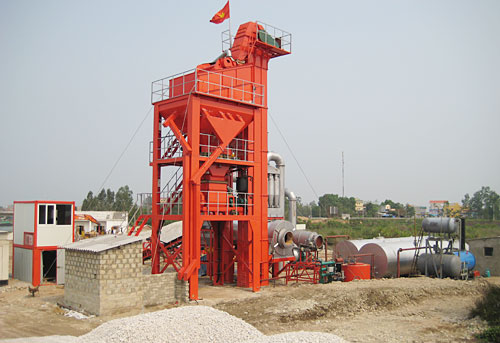

LB1500 Asphalt Mixing Plant

Lb1500 asphalt mixing plant is a stationary asphalt plant. It features in modular design, accurate weighing, low dust and high efficiency. The main components are cold aggregate supply system, drying system, hot mix elevator, mixing tower, bitumen supply system, filler supply system, hot asphalt storage silo (optional) and control room.
capacity: 120 th
mixer capacity: 1500 kgbatch
diesel consumption: 5.5-7 kgton
measuring accuracy: ±0.5% aggregate,±0.25% bitumen, ±0.5% filler
hot asphalt temperature: 130℃-165℃ (adjustable)
dust collection system: cyclonevolute casing collector & baghouse dust collector
air emission: ≤ 20 mgnm³ (ringlemann i)
working noise: ≤ 70 db(a)
installation power: 380 kw
voltage: 220v380v-50hz (adjustable)
dimension (l*w*h): 40*30*17m
