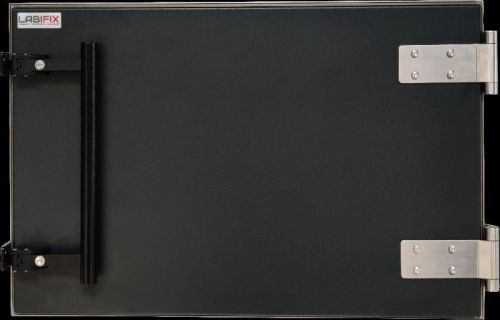

LBX5500 Is An RF Shielded Test Box For WLAN and Wireless Device Testing

₹ 3 Lakh - ₹ 3.30 Lakh / Unit

MaterialRF Shielding Material
CertificateCE Compliance & Quality Management System
Brand NameLabiFix Innovations
Power230AC
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 4 Years
Nature of Business Manufacturer
GST No. 29AAECL2328R1ZX

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerRf Shielded Enclosure
MaterialRF Shielding Material
ShapeCustomizable
FeatureEasy To Install, Fine Finishing, Premium Quality
Open StyleHinged
InstallationCustomised
Country of OriginIndia
Brand NameLabiFix Innovations
ApplicationWireless Device Testing
Protection Level>100DB
Power230AC
Total Carbohydrate1 Year
CertificateCE Compliance & Quality Management System
ConstructionRugged Steel Welded Construction
Fiber opticsST and Waveguide
Power InputPowered by AC / DC Power Filter lines
VentilationHigh performance shielded Air Vents for adequate air flow
Interior18
Shielding Effectiveness> 100dB @ 1 GHz > 100dB @ 3 GHz > 95dB @ 6 GHz
DataFiltered Ethernet Filtered USB 2.0 & 3.0 & Filtered Db9 Serial Port
PlacementRack mountable
RF PortsSMA, SMB, BNC, TNC, UHF,
Exterior20
Operating Frequency Range800MHz to 12GHz

LabiFix's LBX5500 is an RF Shielded Test Box for WLAN and Wireless Device Testing up to 12 GHz. The interior lining is lined with high-performance rf absorbing foam designed to deaden standing waves in the system and provide better isolation. In addition to blocking all wireless signals, it is equipped with shielded power filters to connect power to the box.
A durable welded steel enclosure is complemented by an EMI filter on the data ports. The excellent design makes its structure strong and the precision processing provides better isolation for your device under test and can be customized to your specific requirements by designing the I/O connections with any number of interchangeable plug-in RF modules.

Highlights:

•Excellent shielding performance

•Completely Customizable Shielded Enclosure

•High Performance RF Absorber lining

•User Defined & Interchangeable I/O Connector options

•Rugged Welded Construction

•EMI filters on Data Ports

•RF Fitted Gasket System

•Powered by AC / DC Power Filter lines

•Lightweight Rack Mountable or Table Top Options

•Shielded Air Vents for adequate air flow

Additional Information

Payment Terms T/T
Port of DispatchBangalore
Packaging DetailsWe use export-quality inspection and fumigation wooden boxes with a strong construction, making sure that the shielding box will not be damaged in transport. The design is ideal for long distance transportation such as shipping on land or by sea, and can be shipped to any country around the world.
Delivery Time5-6 Weeks
