Contact SupplierWe are offering lcd 3d cctv security monitor high resolution.

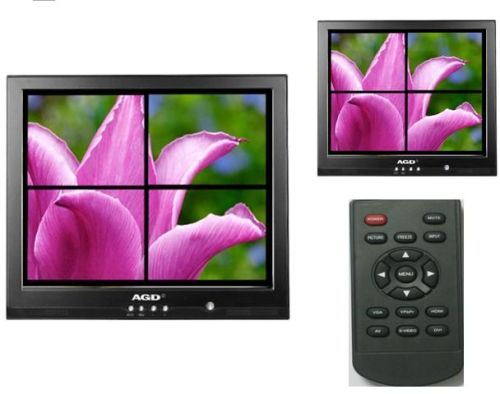

Lcd 3d cctv security monitor high resolution
specification:
model name
gd-700cb
lcd panel style
17" tft lcd panel
max resolution
1280(h)*1024(v)xga
contrast ratio
400:1
brightness
300cd/m²
pixel pitch
0.264mm
color
16.7m
response time
8ms
viewing angle
160°/150°
display model
vga,svga,xga,sxga
port
d-sub 15-pin,s-video,bnc in and bnc out
front button
power switch,led light,osd+/-adjustment and auto
consumption
≤45w
operating environment
temperature: -20°c to 80°c
humidity: 20% to 80% rh
product features and technique parameter:
1.brands of lcd screen for samsung, lg, chimei, au, toshiba, sva etc, a class 335 standard, full new and factory packing screen.
2.front panel control: channel switch/ menu/ volume/ power switch.
3.osd menu: ac input 100v-240v, 1.8a, 50-60hz dc output: 12v/4.0a.
4.input and output connection: dc input, s-video, vga, bnc2, audio in and audio out.
5.audio output: 2watt x 2speaker.
6.power consumption: 40watt maximum.
packing information:
1.packing list: cctv monitor, user manual, power adapter, power cord, vga cable, audio cable, remote controller.
2.packing material: carton box, poly-form & static plastic inside
3.packing size: 430mm* 170mm* 450mm
4.net weight: about 3.2kg gross weight: 4.5kg volume weight: 5.48kg
applicable fields: various surveillance and protect field
