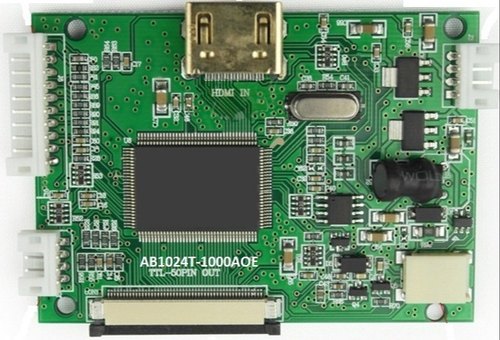

HIGHNESS LCD DISPLAY CONTROLLER BOARD

Model No.

AB1024T-1000AOE

Chipset

2660

Supported Resolution

HDMI

XGA: 1024 X 600

SXGA: 1024 X 768

Power Supply

Power Requirement

Input Power 5V

Manage

Low Power Consumable mode: Standby<0.3W

OSD Language (Optional)

English, Chinese

Key Functions

Menu, Auto, Left, Right, ON/OFF.

Terminal Input

HDMI

HDMI-19pin signal interface

Technical’s Output

To Panel

TTL 50pin

Operating Temperature

-0 - +40°C

Storage Temperature

-1 - +60°C

Humidity

≤80% (Non-Condensing)

Size

70 .23 x 49.47 mm
