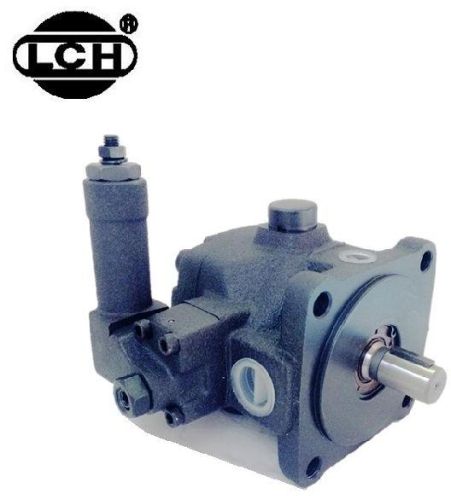

Lch Medium-pressure Variable Displacement Vane Pumps Vdc Series

**Model Number:
VDC-1C-F20-#-20
VDC-1C-F25-#-20
VDC-1C-F30-#-20
VDC-1C-F40-#-20
VDC-2C-F54-#-20
VDC-2C-F70-#-20
**No-Load Delivery Liter/min (1800 r.p.m.)
VDC-1C-F20-#-20: 20
VDC-1C-F25-#-20: 25
VDC-1C-F30-#-20: 30
VDC-1C-F40-#-20: 40
VDC-2C-F54-#-20: 54
VDC-2C-F70-#-20: 70
**Pressure Adjust Range:
SOL “OFF”
All Models:15~18 kgf/cm2
SOL “ON”
A:15-35
B:20-70
C:50-105
D:70-140
**Max. Pressure for all Models: 140kgf/cm2
**Speed r.p.m.
Max. For all Models: 1800 r.p.m.
Min. For all Models: 800 r.p.m.
**Wright
VDC-1C-F20-#-20: 12.9kg
VDC-1C-F25-#-20: 12.9kg
VDC-1C-F30-#-20: 12.9kg
VDC-1C-F40-#-20: 12.9kg
VDC-2C-F54-#-20: 27.9kg
VDC-2C-F70-#-20: 27.9kg.
