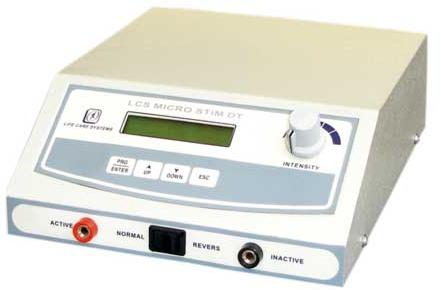

LCS Muscle Stimulator

LCS 163 MUSCLE STIMULATOR (MICRO STIM DT) LCS Muscle Stimulator is more advanced, portable, lightweight. LCD Display & programmable memory, based on micro controlled circuitry & user-friendly systems. APPLICATION To stimulate sensory and motor nerves, facilitate muscle contraction re-educate muscle, improve circulation, preventstretch adhesions, hypertrophy muscle, prevent contractures and to test muscle for enervation. SPECIFICATION DIMENSION (L*H*D) 260mm, 195mm, 85mm WEIGHT 2.5 Kg. Approx OPERATING VOLTAGE 230V 50Hz ABSORPTION 34-Watts FUSES 200 mA ROOM TEMPERATURE 10ºC TO 40ºC MOISTURE 10% TO 80% TREATMENT MODE PLANE GALVANIC, INTERRUPTED GALVANIC,PLANE FARADIC, INTERRUPTED FARADIC PULSE RATE FREQUENCY 1, 3, 5, 10, 30, 50, 100 PPS PULSE DURATION(GALVANIC) 0.01, 0.03, 0.1, 0.3, 1, 3, 10, 30, 100 & 300 mS PULSE DURATION(FARADIC) 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000 & 1100 mS ON TIME (FARADIC) 01 TO 60 Sec OFF TIME (FARADIC) 01 TO 06 Sec POLARITY CHANGE SWITCH AVAILABLE DISPLAY LCD DISPLAY CIRCUIT MICRO CONTROLLER BASE
