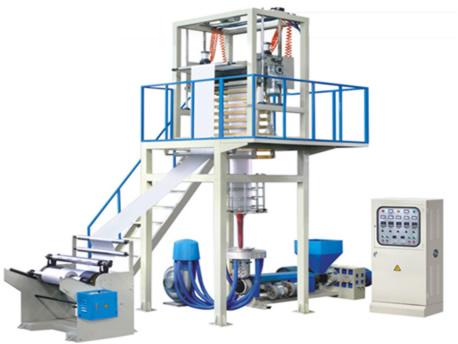

LDPE, HDPE Film Blowing Machine Set

We are offering ldpe, hdpe film blowing machine set.brief instruction:
this machine is used for blowing hdpe,ldpe and lldpe plastic film,which is widely used in civil packing and industrial product packing like food,clothing,fabrics,commodities,etc.it also can produce pearly film and decomposition film.
characteristic:
1.the material of screw stem and material feeding berrel adopts 38crmoal alloy steel,after nitrogen treatment and precision machining, which is more hardness and anti-corrosion to guarantee the long life of the machine.
2.the die head was plated the hard chrome, with rotary core axes structure, which make the extruded melting material more uniform.
3.rewinder device adopts stress rubbing rewinding or central rewinding, and adopts torque motor adjustment,make the rewinding flat,and change easily.
main parameter：
item no. yd-45 yd-50 yd-55
screw diameter ￠45mm ￠50mm ￠55mm
screw l/h ratio 30:1(l/d) 30:1(l/d) 30:1(l/d)
screw speed 10-120 rpm 10-120 rpm 10-120 rpm
diameter of die head 60、80、120 60、80、160 120、160、200\220
film thickness 0.003-0.12mm 0.003-0.12mm 0.003-0.12mm
film folding width 600mm 800mm 1000mm 、1200mm
main motor power 11kw 13kw 15kw
heater power 14.3kw 16kw 18kw
output 20-35kg/h 20-40kg/h 25-50kg/h
weight ≈1.8t ≈1.9t ≈2t
dimension(l×w×h) 4500×2300×4200mm 4500×2500×4200mm 4500×2700×4200mm
