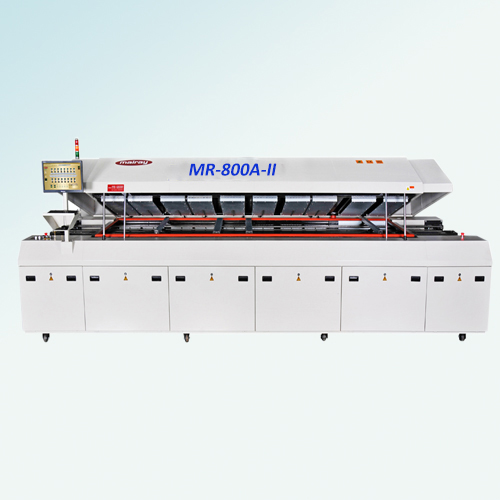

Lead Free Reflow Oven For PCB Assembly Line

we offer lead free reflow oven for PCB assembly line.
odel MR-800A
"Heating
part" Outside Dimension(L*W*H) 5300x1370x1500mm
Weight 2350KG
Number Of Heating Zones Up8Bottom8
Cooling zone up2bottom2(enforced cooling),850mm
Heating Zones Length 3121mm
"Control
System" Electric Supply Required 3phase,380V 5060Hz (option: 3phase,220V 5060Hz)
Power For Warm Up 30KW
Power Consumption 8KW
Warming Time Approx.20 minute
Temp. Setting Range Room Temp. --- 300℃
Control system PC+PLC
Temperature Control Precision ± 1.0℃
Heating Element Especial Heating elements For Long Life
Commutated Element Aluminium Alloy Plate
Abnormal Alarm Abnormal Temperature (Extra-high Extra-low Temp.)
Board Dropped Alarm Yellow–Warming; Green-Normal; Red-Abnormal
"Conveyor
System" Lane quantity 1
Max.Width Of PCB mesh:500mm Rail:450mm
Components height Top Bottom height of PCB is 25mm
Converyor Direction L to R; R to L
Fixed Rail Side Front Rail Fixed(Option:Rear Rail Fixed)
PCB Transmission Agent Air-Reflow = Chain + Mesh ,
Center Support(Optional) "Prevent PCB get deformed due to PCB too wide
or component too heavy"
Converyor Height 900+-20mm
Converyor Speed Range 300～2000mmmin
Lubrication Auto-Afflux Standard
Temp. Thermocouple Slot Standard
Driven Top Hood Opening Standard
Cooling Method Forced-Air (Standard), Water-Chiller (Option)
