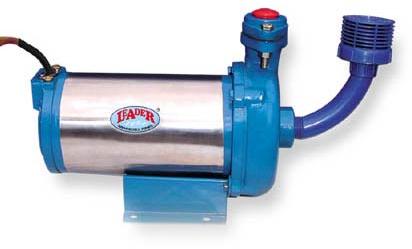

LEADER Horizontal Sub Mono Pumps

we are offering horizontal sub mono pumps.
openwell submersible pumps operates under water, hence no foot valve - no priming - no suction problems- less possibility of burn-out of motor.
long life due to, cast iron construction - water lubricated journal & thrust bearings - dynamically balanced all rotating parts - motor designed to withstand wide voltage fluctuation.
applications
for clean liquids without abrasives, which are non-aggressive for the pump materials. (solids content up to 0.2%)
canals river belt irrigation.
for water supply.
fountains.
for fire fighting applications.
for civil and industrial applications.
for heating, cooling, air - conditioning and circulation plants.
motor
2-pole submersible motor
canals river belt irrigation.
single phase: 230v+5-15%
three phase: 400v+5-15%
protection ip 68
operating conditions
liquid temperature up to 35°.
ambient temperature up to 50°.
minimum submergence depth 0.5mtr.
continuous duty.
performance range
flow rate up to 950 lmin. (57 m3h)
dynamic head up to 42 m.
