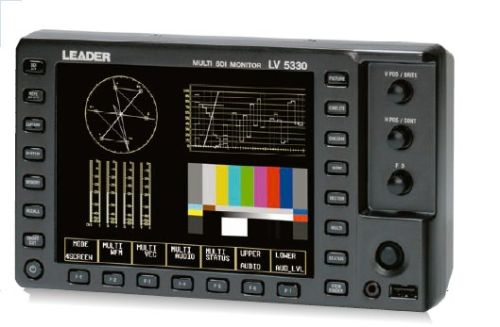

Leader Lv5330 SD-sdi Monitor

We are offering leader lv5330 sd-sdi monitor.
lv5330 hdsd-sdi monitoranalyzer portable and rack-mountable
the lv 5330 is a compact and lightweight multi-sdi test monitor specifically designed for on-camera and portable applications. Picture, waveform, vector, audio and status screens can be displayed individually or in multi-screen representations. The instrument is also equipped with on-picture measurement functions, cinelite and cinezone, and helps facilitate measurements that are easily understood by both technical and operations personnel. High-accuracy measurement and monitoring facilities also include settable error level monitoring and alarms as well as extensive data analysis. A screen capture function facilitates communication between production and post production personnel and aids in project documentation.
features:
* two serial digital inputs two sdi input connectors (channels a and b) support hd-sdi and sd-sdi signals. The selected sdi input is passed through an sdi output connector to facilitate switched monitor output operation.
* display a built-in 6.5-inch xga tft lcd (1,024x768) provides brilliant and clear representations of waveforms, vectors, pictures, audio level meters, status, etc. The multi-screen feature allows these displays to be shown simultaneously in tiled windows.
* picture display brightness, contrast, and saturation is adjustable and aspect ratio, safe action and safe title markers can be displayed. The edge enhancement feature provides visual assistance with focus.
* cinelite ii (cinelite and cinezone)the cinelite on-picture measurement feature displays the luminance of any three user definable points and provides luminance measurements in %, rgb levels (or %) as well as in f-stops. The cinezone feature uses false-colors to represent luminance values on the display enabling quick confirmation of the luminance distribution levels on the display.
* waveform monitoring parade, overlay, y cb cr, rgb, and pseudo-composite displays are available.
* vectorscope vectorscope display is available and accommodates both 75 % and 100 % saturation levels; pseudo-composite vectorscope display is also available.
* 5 bar display the 5 bar display enables simultaneous monitoring of component and composite gamut.
* line selector selects any line of the video signal to be displayed and provides waveform, vector and 5-bar representations of the selected line. A line marker on the picture facilitates visual selection of the appropriate line.
* audio level meter up to 8 channels of embedded audio signals can be displayed using audio bar level meters.
* the sd-sdi audio quantization precision is up to 20 bits.
* viewfinder the camera's composite video output (in ntsc or pal) can be shown on the picture display. The edge enhancement feature assists you in focusing the camera.
* screen capture the displayed screen can be captured and saved to internal memory or usb memory.
* extensive analysis features
* various types of error detection
* sdi signal event log
* digital data dump
* flexible control
* instrument can be remote controlled from a pc over an ethernet network.
* internal memory holds up to 30 presets allowing quick access to your favorite instrument setups. Personalize your lv 5330 by loading your own custom presets via usb thumb-drive.
* external synchronization accepts tri-level sync or ntscpal black burst signals.
* stereo headphone output extracts embedded audio signals and sends 2 user selectable audio channels to the headphone jack.
* panel led illumination you can illuminate all of the panel keys; a useful feature when working in a dark environment
* power supply dc input connector is provided; accepts 12vdc- 18vdc. A v-mount battery adapter is also available as a factory option.
* tripod mounting a screw(14.in) hole attaching a camera tripod is provided on the bottom panel of the lv 5330.
* battery mount (factory option)a battery adapter can be installed on the rear panel as a factory option.
this is a new unit!
