Leak Tester

₹ 90,500 - ₹ 2.72 Lakh / Set

MOQ1 Set(s)
leaknegative pressure
leakage testerASTM D 3078
automaticintelligent
leak detectionleakage detection
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Brief Introduction: Leak Tester is designed for the examination of airproof property of packages, containers, bags, pipes. Leak tester is widely used in food, beverage, pharmaceutical, daily....

Company Information

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2013

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brief Introduction:

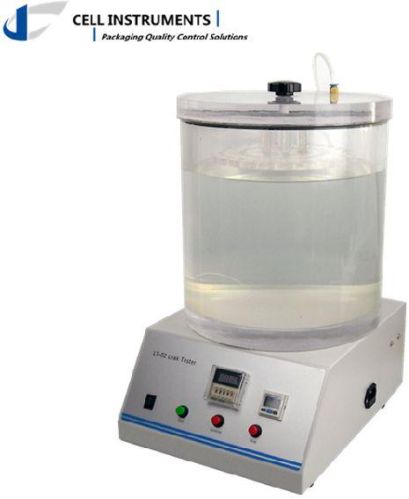

Leak Tester is designed for the examination of airproof property of packages, containers, bags, pipes. Leak tester is widely used in food, beverage, pharmaceutical, daily chemical, electrical and electronic industries, etc. Leakage Tester complies with ASTM D3078 and GBT 15171 standards.
The leak tester system is composed of the mainframe and the vacuum chamber. A test sample is placed into a vacuum chamber with water and the air above water level is evacuated by a venturi vacuum ejector. A great pressure difference is created inside and outside the sample and any slight leakage can be observed and identified when the sample is inflated.
Features
Leak Tester uses vacuum ejector to generate stable vacuum environment.
1. Leak test process all automatic
2. Digital vacuum degree and test time setting
3. Automatic vacuum maintenance and air back-flushing
4. Extra-thick perspex
5. Different chamber sizes available
6. No vacuum pump required
7. Easy operation and maintenance leak detection system
Technical Specification
Vacuum: 0~-90KPa0~-13PSI
Vacuum chamber size: Φ270 mm x 210 mm (H) ( Customization available)
Gas source: Compressed air
Gas Pressure: 0.7MPa101.5PSI
Standards
ASTM D3078 , GBT 15171
