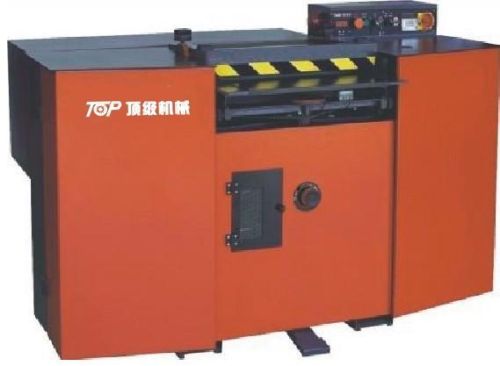

Leather Splitting Machine

According to ltalian technology and using japanese cnc devices , our splitting machine is made to be sturdy, easier to be operated and maintained. It fits many kids of materials and processing methods, and the quality can be assured. Such as pu, eva, real leather, renewed bark and rubber from leather shoes, sport shoes, leather soles, rubber sloes, belts, leather bags, gloves, electronic products and so on.
(1) the separate grinding unit is composed of durable emery wheels, to adjust the knife bevel quickly.
(2) to collect the emery dust and scrap dust by different aspirators.
(3) high speed of changing guild roll, guild bar(2min)and knife(5min), no need to regulate the guild roll thickness or move the joint.
(4) suitable highness can reduce tired of operating the machine.
(5) to check the knife bevel by electron optics.
(6) digital splitting thickness readout.
(7) four different pressure changing.
(8) safety system confine to ce standard.
(9) noise below 60db.
(10) rolling wheel always on its track.
(11) no need to adjust the knife.
(12) shifting guild roll and guild bar in 2 minutes.
(13) shifting knife in 5 minute.
Model voltage power dimension(mm) n.w working width
top420 380v 2.2kw 1600x1300x1100 625kg 420mm
top520 380v 2.2kw 1700x1300x1100 670kg 520mm
top620 380v 2.5kw 1900x1300x1100 750kw 620mm
