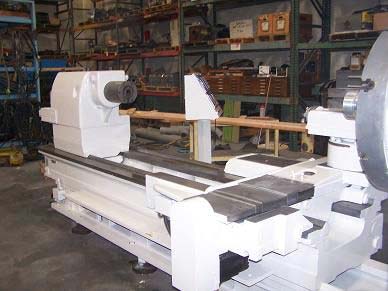

Leblond Gap Bed CNC Lathe

We are a reputed Supplier and Exporter of Leblond Gap Bed CNC Lathe from USA. The CNC Lathe offered by us is manufactured in adherence with international quality standards. In order to meet the bulk and urgent requirements of the buyers, we maintain a large stock of the CNC Lathes in our spacious warehouse. Buyers can obtain the Lathe at market-leading rates from us.

HEADSTOCK :

• Spindle speeds, number : 36

• Spindle speeds range : 5.4-600 rpm

• Spindle diameter at bearings –front, center, rear : 8”, 6”, 4 5/16”

• Front spindle bearings, two Timken #0, outside diameter : 12 1/2”

  • Radial load at 100 rpm : 106,800 lbs

  • Radial load at 100 rpm : 106,800 lbs

• Center spindle bearing, outside diameter : 8 858”

  • Radial load at 100 rpm : 23,300 lbs.

• Read spindle ball bearing, outside diameter : 7 7/8”

  • Radial load at 100 rpm : 21,790 lbs.

• Spindle, diameter of hole, straight : 3 1/16”

• Spindle, diameter of hole, taper (No. 350 ASA) : 3 1/2”

• Spindle, size of center : #6 Morse

• Spindle nose, standard taper key drive, size : L3

• Spindle nose, diameter, large end of taper : 6 1/2”

• Headstock length on bed : 48 5/8”

CARRIAGE AND COMPOUND REST :

• Length on ways : 46 3/4”

• Bearing surface, square inches : 415

• Bridge width : 15”

• Cross slide travel, with taper attachment : 21 1/2”

GENERAL CAPACITY :

• Swing over bed and carriage wings : 36”

• Swing over cross slide : 20 ½”

• Swing over 24” wide gap : 56” (approx)

• Distance between centers (max. turning length) in increments of 24” : 156”

• Steady Rest Capacity, min. and max. diameter, standard size : 1 ¼” to 12”

• Steady Rest Capacity, min. and max. diameter, oversize : 9 ½” to 20”

• Follow rest Capacity, min, max. diameter : 1 ½” to 7”

• Face plate diameter, small (standard equipment) : 14”

• Distance, spindle center to floor : 43”

• Chuck Size : 36” 4-jaw chuck

Price on Location : $325,000.00

New, GE Fanuc 21 iT CNC Control

Machine Serial Number : 3NK855
