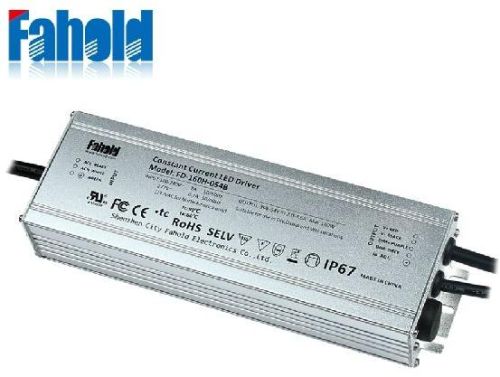

LED Canopy Light Driver

FD-160H Feature IP67 -UL and CUL listed for wet locations-Solid construction die cast aluminum body  Max output power 160W.Constant current design. 3 in 1 dimming mode:0‐10V,PWM,RX. Smoothly dimming(0‐100%),can dim to off.TUV CB CE UL FCC Certified.PROTECTION:Short Circuit,Open CircuitSurface Mount Light Driver Application Canopy lights,Street lights,High bay lights, Wall Pack lights. LED Advertising Sign,LED Architectural Lighting,LED Commercial Industrial Lighting,LED General Luminaries,Commercial Led Wall Lights. Introduction Model Wattage(W) Output volgag(V) output current(A) Efficiency(%) 100V FD-160H-038 BCD 160 24-38 2.50-5.00 89 FD-160H-042 BCD 160 30-42 2.30-4.40 90 FD-160H-054 BCD 160 36-54 2.00-3.60 90 FD-160H-076 BCD 160 45-76 1.30-2.75 91 FD-160H-143 BCD 160 72-143 0.70-1.40 90    Note    Optional letters A, B, C, D or empty, indicating that the output increases with different optional functions. The default space indicates no other optional function (basic model); A letter indicates that the aluminum shell with three-in-one dimming, B letters that three-in-one dimmable light and fine-tuning current, C letters that plastic shell with three A dimming, D letters that plastic shell base models (no dimming function) Input characteristics   Input Voltage 100-277Vac Input Frequency 50-60Hz Input Current (Typ.) 2A . @ 100-277Vac , 100% load Inrush Current 60Amax.
