LED Drivers

We are offering build-in led drivers.
led can be dimmed with a potentiometer knob, a tact switch or a dc0-10v control signal, very wide dimming rang will be optional at 0%-100%, 5%-100% or 10%-100% or others.
stable flicker-free dimming, flat constat current output. Pwm or lineay dimming mode.

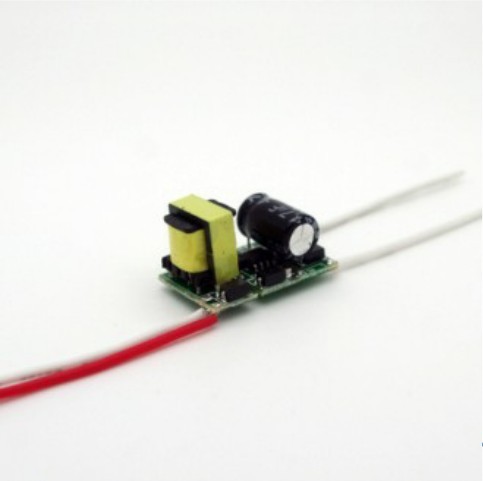

for example, here is a simple description of a dimmable led driver board, linearly dimming 0%-100% thru a potentiometer
1) wide input voltage 3.6-36vdc (3-26vac), 3.6-24vdc, 9-50v
2) 350ma,500ma,750ma,1000ma, 1500ma,2000ma,3000ma true constant current output
3) external potentiometer linearly dimming 0%-100%
4) optional on-board trim adjustment 30%-120%
5) optional external analog/digital control
6) output open circuit protection
7) output short circuit protection
8) thermal shutdown protection to ensure the operating temperature less than 100-120c
9) high efficiency up to 95%
specifications
1.strong power 1w-5wled driver
2.high efficiency led driver
3.high reliability led driver
